JGDSD Series Servo Drive

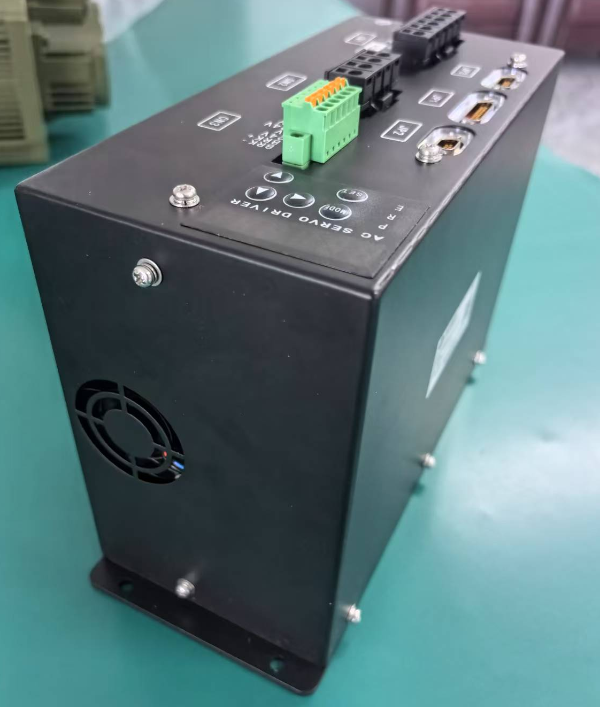

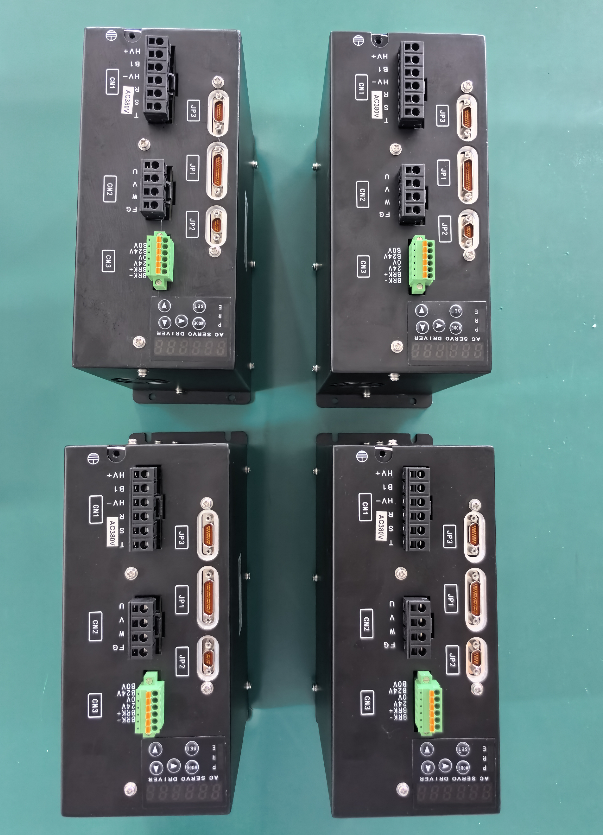

JGASD-28A38-N124-J30-RU
Engineered exclusively for extreme harsh environments, the JGASD series servo drives excel in scenarios with frigid low temperatures, intense vibration, and heavy shock—conditions that challenge standard servo drives.
Built with high-performance DSP chips and premium IGBT power modules, this rugged configuration delivers ultra-responsive control, stable power output, and exceptional reliability.
Featuring a highly integrated design that simplifies system architecture, the drives seamlessly adapt to wide temperature ranges and high-altitude operations, making them the trusted choice for mission-critical applications in aerospace, marine, industrial automation, and other harsh-operating sectors.
product details
Core Features
• Rated power 2.8KW
• 3 times overload capacity
• Multiple control modes: position/speed/torque control
• Comprehensive protection mechanisms
• Built-in resolver decoding module
• Operating temperature: -40°C to +85°C
• Supports RS232, RS485, CAN open communication
Key Features
Items | Specification | ||
Basic Specification | Control | Three-phase full wave rectifier IGBT SVPWM mode | |
Operation conditions | Operation Temperature | -40℃~+85℃ | |
Storage Temperature | -50℃~+85℃ | ||
Humidity | <85% [No frost] | ||
Vibration resistance | ≤2.5G | ||
Structure | Wall mounted box type | ||
Cooling Type | Natural cooling /Fan cooling | ||
Parameters | Input Voltage | AC 380v, DC600v | |
Rated Power | 2.8KW | ||
Rated Current | 7.5A | ||
Peak Current | 22.5A | ||
Supported Encoder | Resolver, Multi-Turn Absolute (BISS, Tamagawa), Incremental | ||
Monitoring Output | 14 Real-time Data Monitoring Items (Speed/Current/Position Deviation, etc.) | ||
Functions | Protection Functions | Overcurrent, Overload, Overheating, Overspeed, Overvoltage, Undervoltage, Control Power Abnormal: | |
Communication | RS232/RS485/CAN/CANopen | ||
Regeneration | Built-in Regeneration Resistor | ||

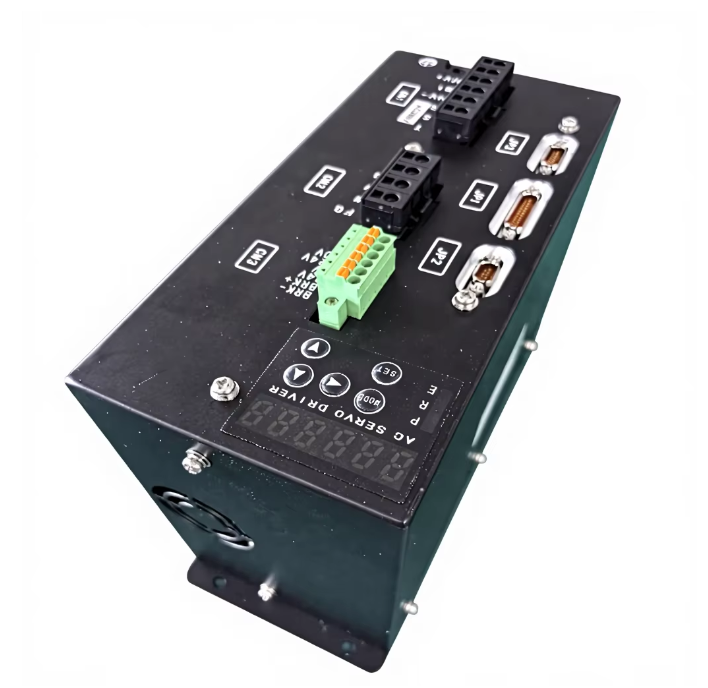

Interface Information Table
Type | Interface ID | Cores Qty. | Interface Definition | Remarks |
Main Power | CN1 | 6 | Main Power in | HV+/B1/HV-/R/S/T |
Power output | CN2 | 4 | Power to Motor | FG/U/V/W |
Control Power | CN3 | 4 | Control Power in and Brake Power out | 0v/28v/BRK+/BRK- |
I/O Interface | JP1 | 25 | I/O connector | Connector type: J30J-25ZKWP7 |
Communication | JP2 | 9 | CAN/RS232/RS232 | Connector type: J30J-9ZKWP7 |
Encoder Interface | JP3 | 15 | Encoder connector | Connector type: J30J-15ZKWP7 |
