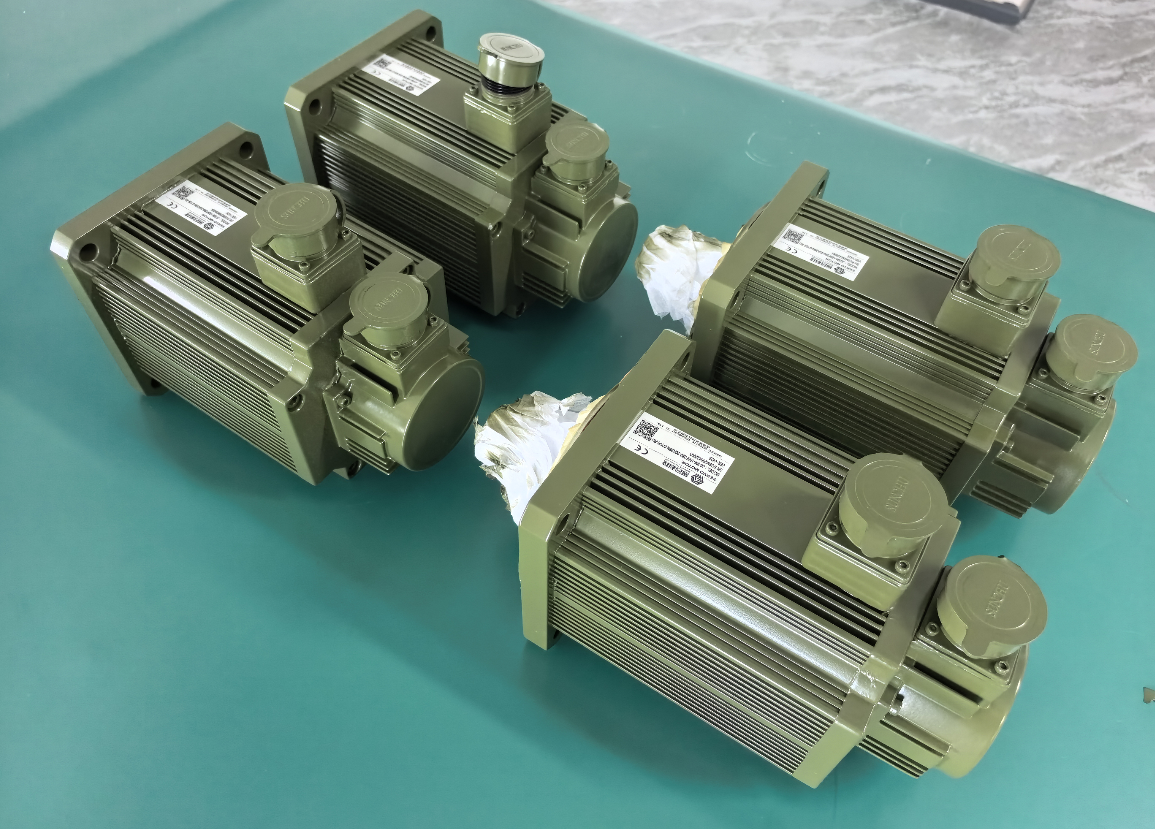

JGSM Series Servo Motor

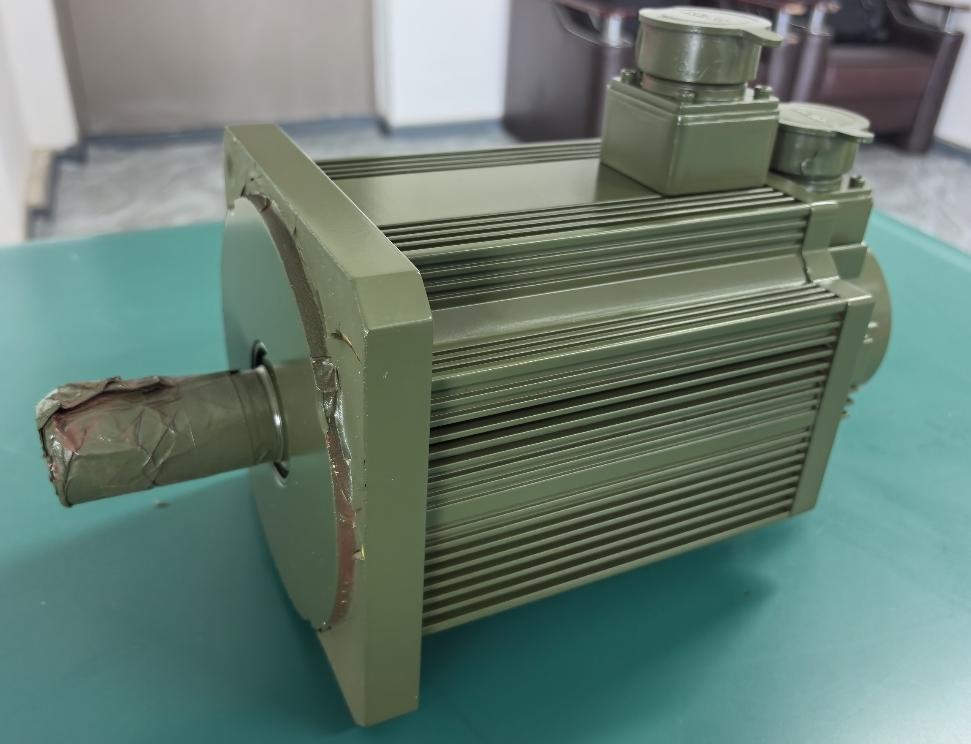

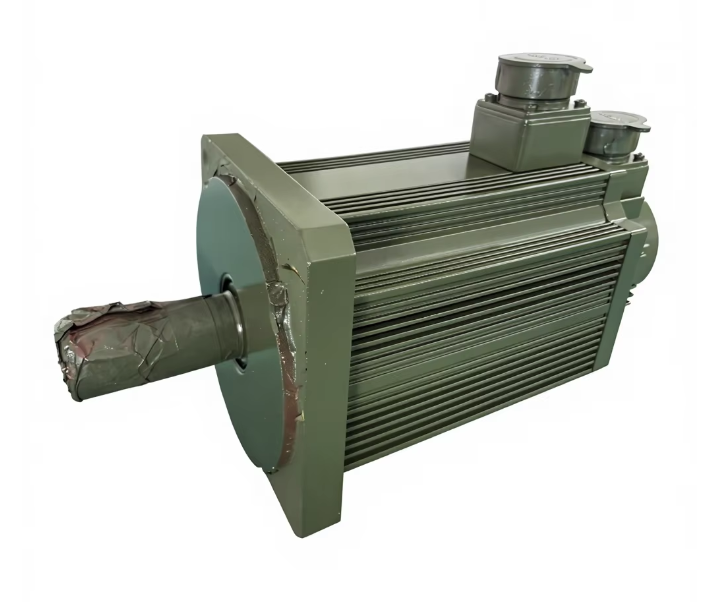

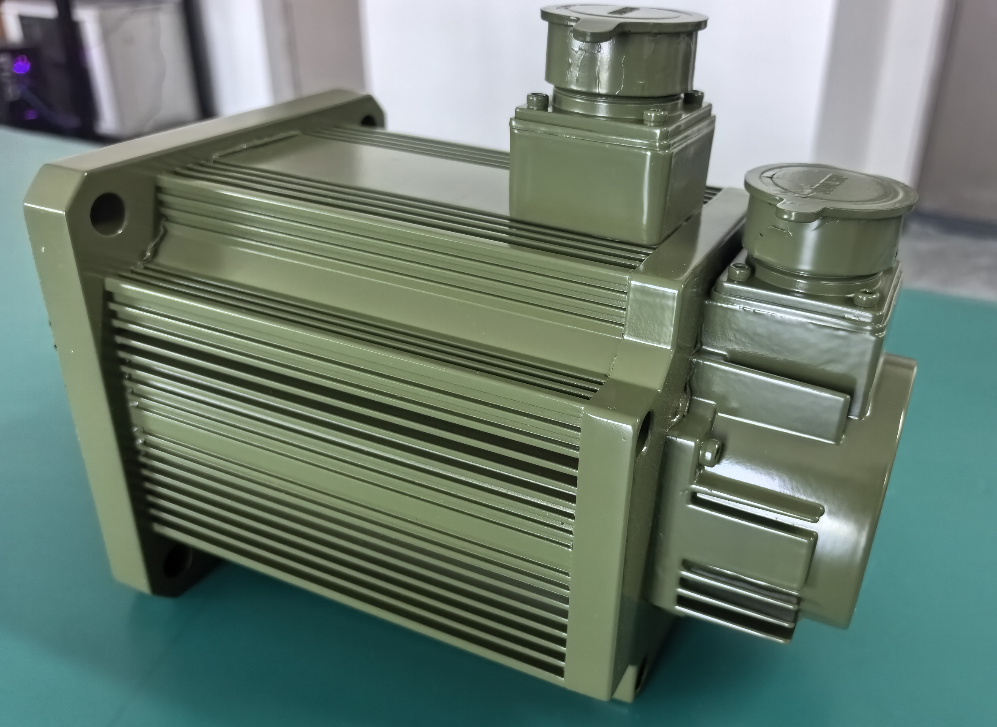

JGSM-150F280-20A38N-GY06-RU
Engineered specifically for extreme harsh environments, the JGSM series servo motors excel in scenarios with low temperatures, high altitudes, intense vibration, and heavy shock—conditions that challenge standard servo motors. Leveraging high-performance permanent magnet materials and resolvers as feedback devices, these motors deliver exceptional torque overload capacity and robust vibration/shock resistance, ensuring uninterrupted, reliable operation for mission-critical heavy-duty applications.
product details
Core Features
• Rated power 2.8KW, Rated Torque 13.4N.m.
• 3 times torque overload capacity, with a maximum speed of 3300 rpm
• Resolver as feedback device, high reliability
• Operating temperature: -40°C to +85°C
• IP67 Protection
Key Features
Parameters | Model | |
Parameter | Units | JGSM-150F280-20A38N-GY06-RU |
Flange Size | mm | 150 |
Rated Power | W | 2800 |
Rated Voltage | V | 380 |
Rated Speed | rpm | 2000 |
Max. Speed | rpm | 3300 |
Rated Torque | N·m | 13.4 |
Peak Torque | N·m | 40.2 |
Rated Current | A | 7.4 |
Peak Current | A | 22.2 |
Rotor Inertia | 10-4 Kg·m2 | 11.13 |
Pole-pairs | 5 pole-pairs | |
Insulation Class | Class F | |
Protect Grade | IP67 | |
Feedback Encoder | Resolver | |
Brake | No Brake | |
Max. Operating Altitude | 6000m | |
Operating Conditions | Temperature: -40℃~+85℃; Humidity: ≤90%RH (no frost) | |
Storage Conditions | Temperature: -50℃~+85℃；Humidity: ≤90%RH (no frost) | |
Remarks | ||
Interface Information Table
Category | Connector | Cores Qty. | Interface Definition | Remarks |
Power Interface | SC-YD28J04Z | 4 | Motor Power Supply | PE/U/V/W |
Encoder Interface | SC-YD28J07Z | 7 | Feedback resolver interface | PE/R1/R2/S1/S3/S4/S2 |
