JGSM Series Servo Motor
JGSM-60B20-15D24B-RU
Engineered exclusively for harsh operating environments, the JGSM series servo motors thrive in scenarios with low temperatures, high altitudes, intense vibration, and heavy shock—conditions that often disable standard servo motors.
Leveraging high-performance permanent magnet materials and resolvers as feedback devices, these motors deliver exceptional torque overload capacity and robust vibration/shock resistance, ensuring consistent, reliable operation for mission-critical industrial applications.
product details
Core Features
• Rated power 200W, Rated Torque 1.3N.m.
• 3 times torque overload capacity, with a maximum speed of 3000 rpm
• Resolver as feedback device, high reliability
• Operating temperature: -40°C to +85°C
• IP65 Protection
Key Features
Parameters | Model | |
Parameter | Units | JGSM-60B20-15D24B-RU |
Flange Size | mm | 60 |
Rated Power | W | 200 |
Rated Voltage | V | 24 |
Rated Speed | rpm | 1500 |
Max. Speed | rpm | 3000 |
Rated Torque | N·m | 1.3 |
Peak Torque | N·m | 2.6 |
Rated Current | A | 14.5 |
Peak Current | A | 29 |
Rotor Inertia | 10-4 Kg·m2 | 0.243 |
Pole-pairs | 5 pole-pairs | |
Insulation Class | Class F | |
Protect Grade | IP65 | |
Feedback Encoder | Resolver | |
Brake | With Brake, DC24v | |
Max. Operating Altitude | 6000m, capacity reduction required above 2000 m | |
Operating Conditions | Temperature: -40℃~+85℃; Humidity: ≤90%RH (no frost) | |
Storage Conditions | Temperature: -50℃~+85℃；Humidity: ≤90%RH (no frost) | |
Remarks | ||

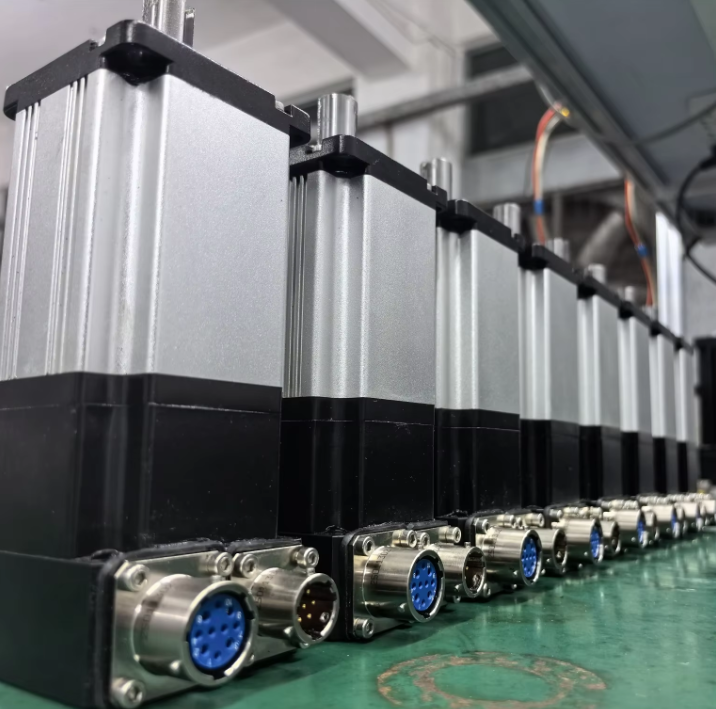

Interface Information Table
Category | Connector | Cores Qty. | Interface Definition | Remarks |
Power Interface | XCE14F7Z1D1 | 7 | Motor Power Supply, DC24v Brake power supply | FG/U/V/W/Brake+/Brake- |
Encoder Interface | XCE18F10K1D1 | 18 | Feedback resolver interface | FG/Ref+/Ref-/COS+/COS-/SIN-/SIN+ |
