JGSM Series Servo Motor
JGSM-80C100-30A38B-IP67H-RU

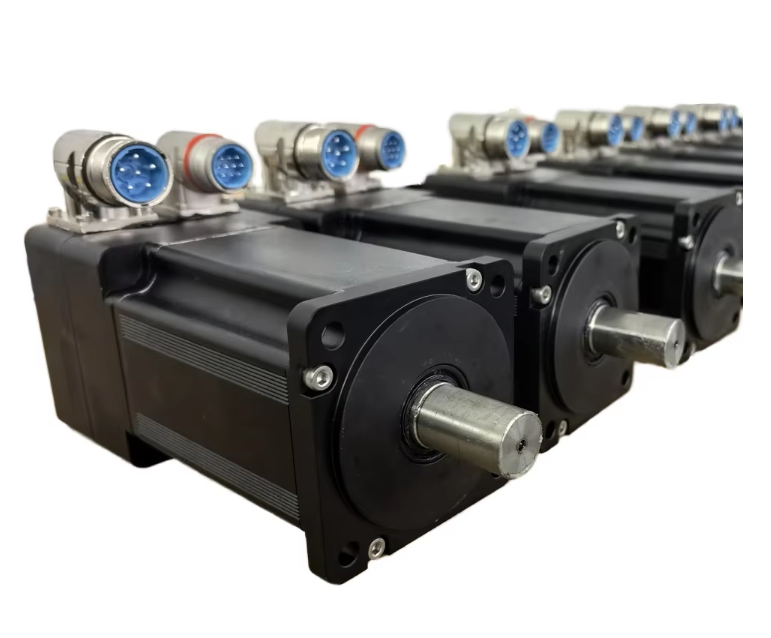

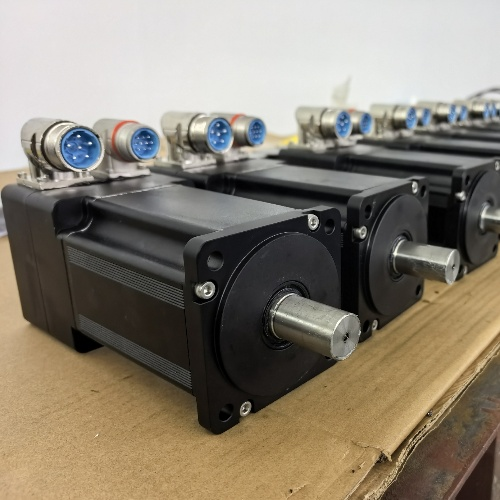

Engineered specifically for extreme harsh environments, the JGSM series servo motors excel in scenarios with low temperatures, high altitudes, intense vibration, and heavy shock—where standard motors often fail.
Leveraging high-performance permanent magnet materials and resolvers as feedback devices, these motors deliver exceptional torque overload capacity and robust vibration/shock resistance, ensuring uninterrupted and reliable operation even in the harshest industrial conditions.
product details
Core Features
• Rated power 1KW, Rated Torque 3.18N.m.
• 3 times torque overload capacity, with a maximum speed of 5100 rpm
• Resolver as feedback device, high reliability
• Operating temperature: -40°C to +85°C
• IP67 Protection
Key Features
Parameters | Model | |
Parameter | Units | JGSM-80C100-30A38B-IP67H-RU |
Flange Size | mm | 80 |
Rated Power | W | 1000 |
Rated Voltage | V | 380 |
Rated Speed | rpm | 3000 |
Max. Speed | rpm | 5100 |
Rated Torque | N·m | 3.18 |
Peak Torque | N·m | 9.54 |
Rated Current | A | 2.72 |
Peak Current | A | 8.16 |
Rotor Inertia | 10-4 Kg·m2 | 2.16 |
Pole-pairs | 5 pole-pairs | |
Insulation Class | Class F | |
Protect Grade | IP67 | |
Feedback Encoder | Resolver | |
Brake | With Brake, DC24v | |
Max. Operating Altitude | 6000m, capacity reduction required above 2000 m | |
Operating Conditions | Temperature: -40℃~+85℃; Humidity: ≤90%RH (no frost) | |
Storage Conditions | Temperature: -50℃~+85℃；Humidity: ≤90%RH (no frost) | |
Remarks | ||
Interface Information Table
Category | Connector | Cores Qty. | Interface Definition | Remarks |
Power Interface | HF02106ZJ | 6 | Motor Power Supply, DC24v Brake power supply | PE/U/V/W/Brake+/Brake- |
Encoder Interface | HF0180410ZJ | 10 | Feedback resolver interface | PE/Ref+/Ref-/COS+/COS-/SIN-/SIN+ |
