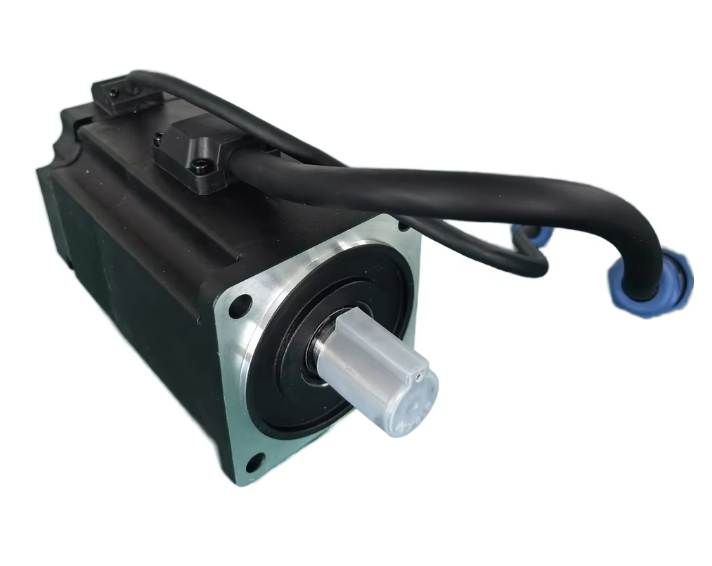

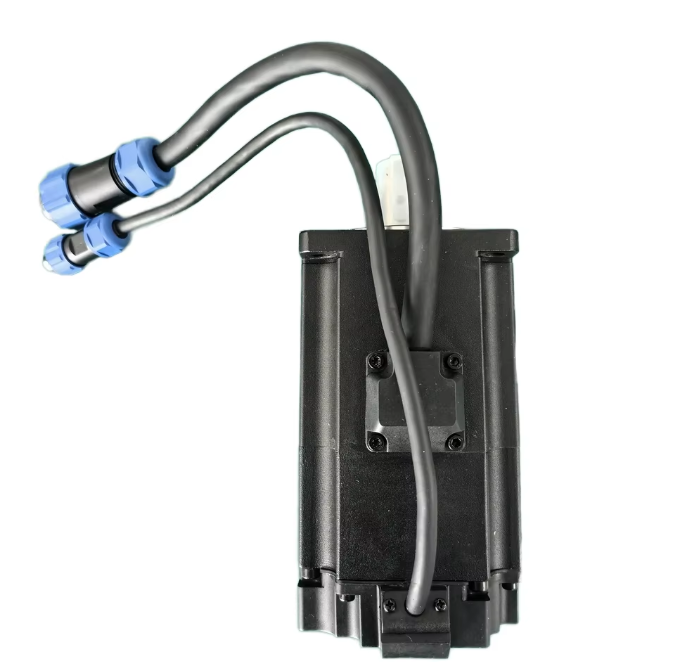

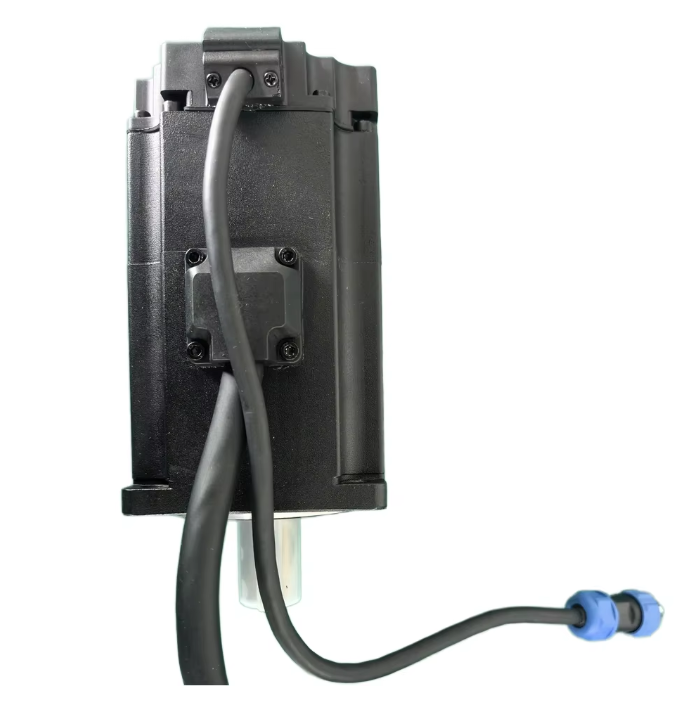

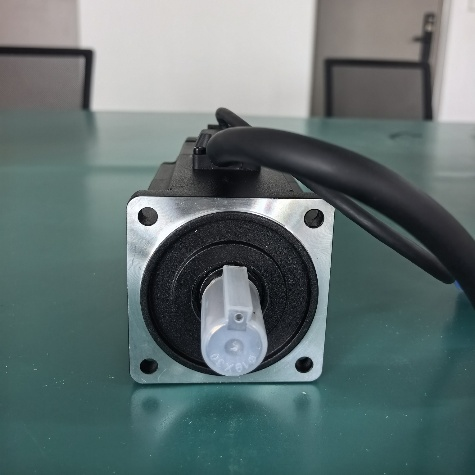

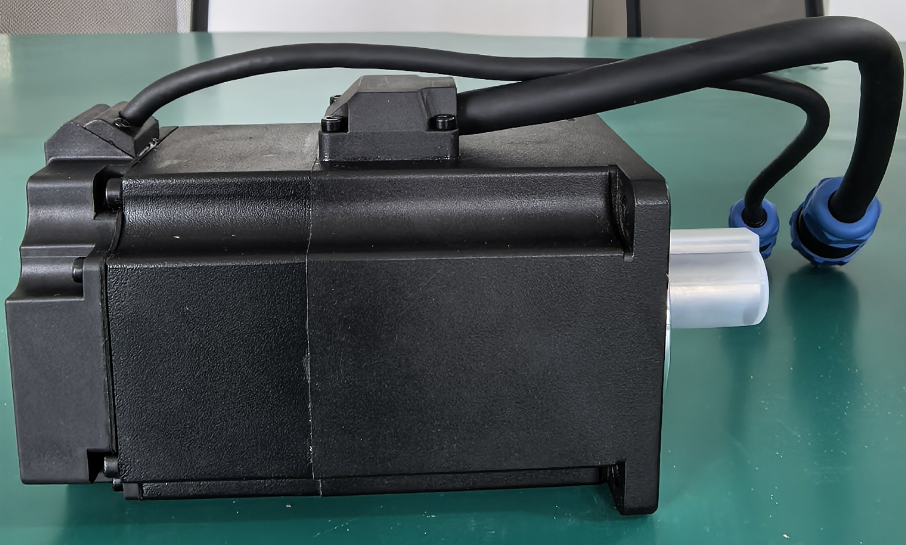

GYHCSM M2 Servo Motor
M2H080- S75B30C-PC1B1
Engineered for high-precision industrial motion control, the GYHCSM M2 series servo motor combines a compact footprint, ultra-fast response, and exceptional positioning accuracy—making it the ideal choice for demanding applications in laser processing, precision printing, and semiconductor manufacturing.
Designed to deliver consistent, reliable performance in critical production workflows, this motor empowers equipment with micron-level control capabilities.
product details
Core Features
• Rated power 750W, Rated Torque 2.4N.m.
• 3 times torque overload capacity, with a maximum speed of 6000 rpm
• Build-in multi-turn 23bit absolute encoder
• Operating temperature: -20°C to +65°C
• IP65 Protection
Key Features
Parameters | Model | |
Parameter | Units | M2H080- S75B30C-PC1B1 |
Flange Size | mm | 80 |
Rated Power | W | 750 |
Rated Voltage | V | 220 |
Rated Speed | rpm | 3000 |
Max. Speed | rpm | 6000 |
Rated Torque | N·m | 2.4 |
Peak Torque | N·m | 7.2 |
Rated Current | A | 3.8 |
Peak Current | A | 11.4 |
Rotor Inertia | 10-4 Kg·m2 | 1.62 |
Pole-pairs | 5 pole-pairs | |
Insulation Class | Class F | |
Protect Grade | IP65 | |
Feedback Encoder | Multi-turn 23bit absolute | |
Brake | With Brake, DC24v | |
Max. Operating Altitude | 2000m | |
Operating Conditions | Temperature: -20℃~+65℃; Humidity: ≤90%RH (no frost) | |
Storage Conditions | Temperature: -30℃~+75℃；Humidity: ≤90%RH (no frost) | |
Remarks | ||
Interface Information Table
Category | Connector | Cores Qty. | Interface Definition | Remarks |
Power Interface | AMP/170360-1 | 6 | Motor Power Supply, DC24v Brake power supply | PE/U/V/W/ Brake+/Brake- |
Encoder Interface | AMP/170359-1 | 9 | Feedback resolver interface | SD+/SD-/E+/5v/0v/E-/PE |
