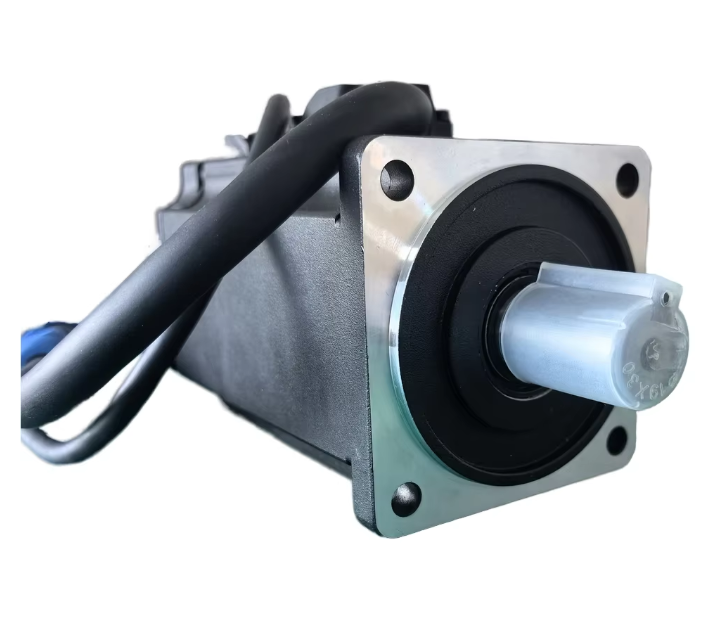

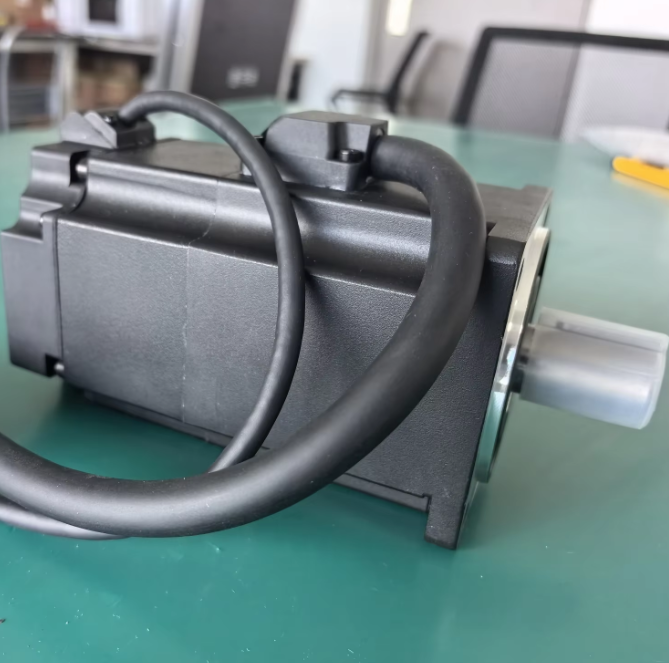

GYHCSM M2 Servo Motor
M2H060-24D40B30C-PC1B1
Engineered for high-precision industrial motion control, the GYHCSM M2 series servo motor integrates a compact footprint, ultra-fast response, and exceptional positioning accuracy—making it a go-to solution for demanding applications in laser processing, precision printing, and semiconductor manufacturing.
Tailored to deliver consistent reliability in critical production workflows, this motor empowers equipment with micron-level control to meet stringent industrial precision requirements.
product details
Core Features
• Rated power 400W, Rated Torque 1.27N.m.
• 3 times torque overload capacity, with a maximum speed of 3200 rpm
• Build-in multi-turn 23bit absolute encoder
• Operating temperature: -20°C to +65°C
• IP65 Protection
Key Features
Parameters | Model | |
Parameter | Units | M2H060-24D40B30C-PC1B1 |
Flange Size | mm | 60 |
Rated Power | W | 400 |
Rated Voltage | V | 24 |
Rated Speed | rpm | 3000 |
Max. Speed | rpm | 3200 |
Rated Torque | N·m | 1.27 |
Peak Torque | N·m | 3.81 |
Rated Current | A | 20 |
Peak Current | A | 60 |
Rotor Inertia | 10-4 Kg·m2 | 0.53 |
Pole-pairs | 5 pole-pairs | |
Insulation Class | Class F | |
Protect Grade | IP65 | |
Feedback Encoder | Multi-turn 23bit absolute | |
Brake | With Brake, DC24v | |
Max. Operating Altitude | 2000m | |
Operating Conditions | Temperature: -20℃~+65℃; Humidity: ≤90%RH (no frost) | |
Storage Conditions | Temperature: -30℃~+75℃；Humidity: ≤90%RH (no frost) | |
Remarks | ||

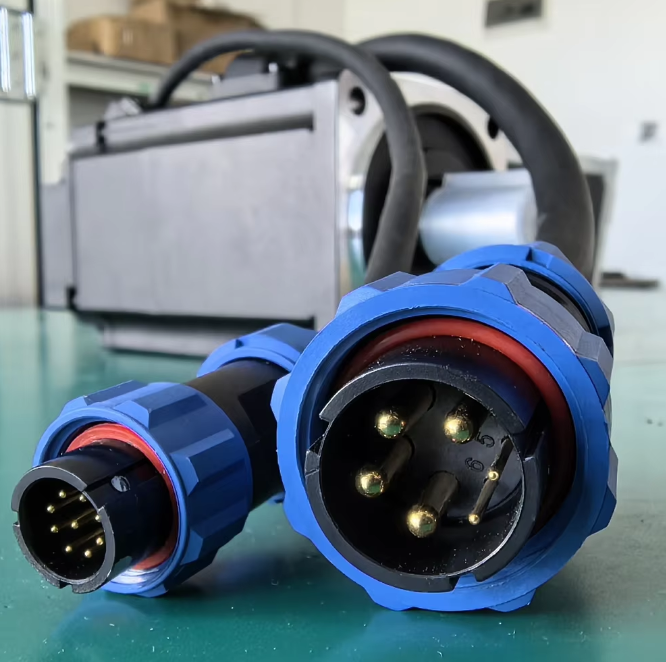

Interface Information Table
Category | Connector | Cores Qty. | Interface Definition | Remarks |
Power Interface | GM-2110/P-6B | 6 | Motor Power Supply, DC24v Brake power supply | PE/U/V/W/ Brake+/Brake- |
Encoder Interface | GM-1310/P-9 | 9 | Feedback resolver interface | SD+/SD-/E+/5v/0v/E-/PE |
