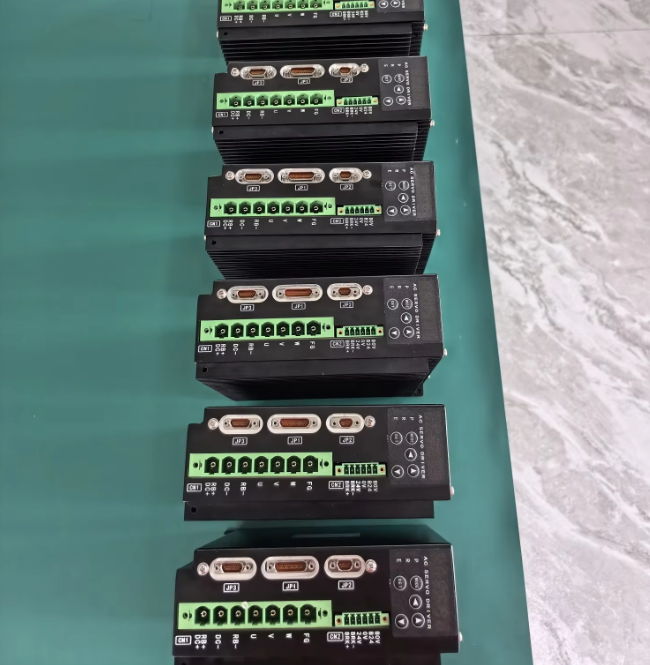

JGDSD Series Servo Drive
JGDSD-02D24-N124-J30- RU
Engineered exclusively for extreme harsh environments—including frigid low temperatures, intense vibration, and heavy shock—the JGDSD series servo drives deliver uncompromising performance where standard drives falter.
Built with high-performance DSP chips and premium IGBT power modules, this robust configuration ensures ultra-low control latency, rapid dynamic response, and exceptional reliability.
Featuring a highly integrated design that streamlines system architecture, the drives seamlessly adapt to wide temperature ranges and high-altitude conditions, making them the trusted choice for mission-critical applications in aerospace, marine, industrial automation, and other harsh-operating sectors.
product details
Core Features
• Rated power 200W
• 3 times overload capacity
• Multiple control modes: position/speed/torque control
• Comprehensive protection mechanisms
• Operating temperature: -40°C to +85°C
• Supports RS232, RS485, CAN open communication
Key Features
Items | Specification | ||
Basic Specification | Control | Three-phase full wave rectifier IGBT SVPWM mode | |
Operation conditions | Operation Temperature | -40℃~+85℃ | |
Storage Temperature | -50℃~+85℃ | ||
Humidity | <85% [No frost] | ||
Vibration resistance | ≤2.5G | ||
Structure | Wall mounted box type | ||
Cooling Type | Natural cooling /Fan cooling | ||
Parameters | Input Voltage | DC 24v | |
Rated Power | 200W | ||
Rated Current | 15A | ||
Peak Current | 45A | ||
Supported Encoder | Resolver, Multi-Turn Absolute (BISS, Tamagawa), Incremental | ||
Monitoring Output | 14 Real-time Data Monitoring Items (Speed/Current/Position Deviation, etc.) | ||
Functions | Protection Functions | Overcurrent, Overload, Overheating, Overspeed, Overvoltage, Undervoltage, Control Power Abnormal: | |
Communication | RS232/RS485/CAN/CANopen | ||
Regeneration | Built-in Regeneration Resistor | ||

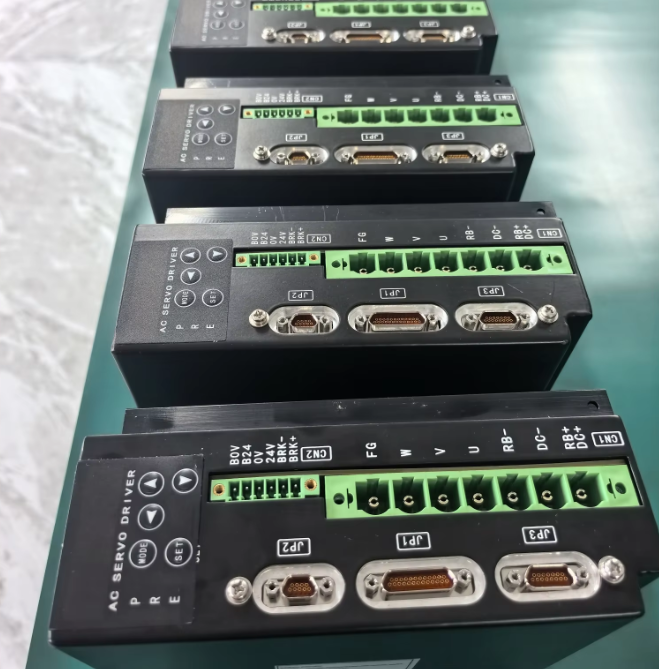

Interface Information Table
Type | Interface ID | Cores Qty. | Interface Definition | Remarks |
Main Power | CN1 | 7 | Main Power in & Power to Motor | DC+/DC-/RB-/U/V/W/FG |
Control Power | CN3 | 6 | Control Power in and Brake Power out | 0v/24v/BRK+/BRK-/B24/B0 |
I/O Interface | JP1 | 25 | I/O connector | Connector type: J30J-25ZKWP7 |
Communication | JP2 | 9 | CAN/RS232/RS232 | Connector type: J30J-9ZKWP7 |
Encoder Interface | JP3 | 15 | Encoder connector | Connector type: J30J-15ZKWP7 |
