RK3568 Series Industry PC
RU-IPC-3568-4-32-N4

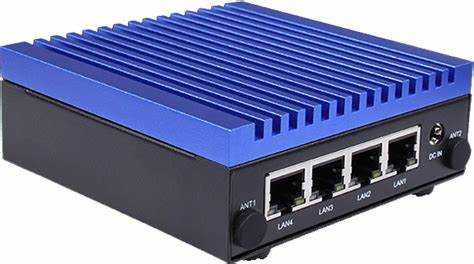

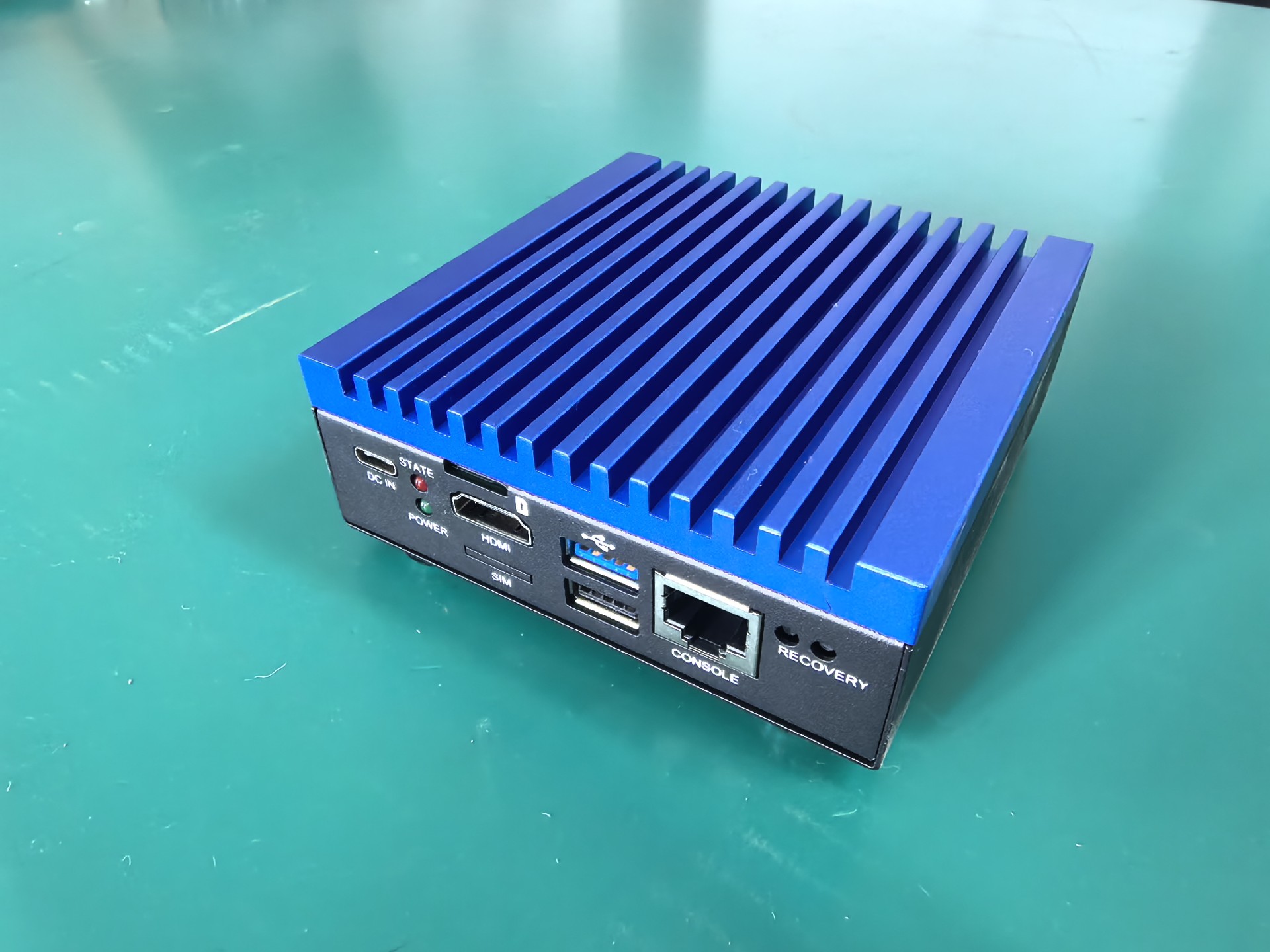

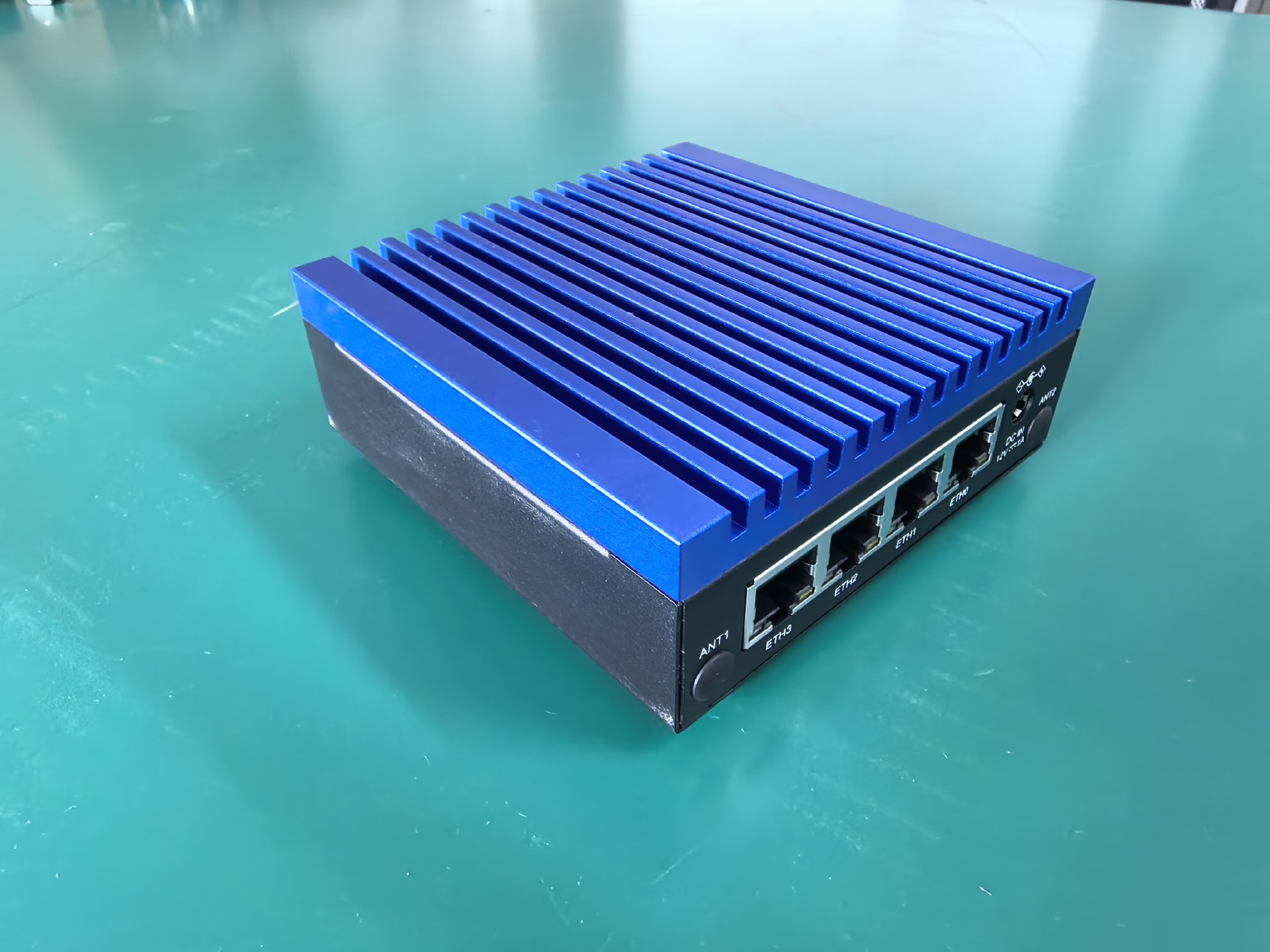

The RU-IPC-3568 Series Industrial PC is equipped with the Rockchip RK3568 CPU. It supports 2 x 2500M Ethernet ports and 2 x 1000M Ethernet ports, USB ports and UART, and enables high-definition HDMI display output.
Featuring a compact, slim design and low power consumption, its full-load power consumption is less than 7W. Supports operating systems including Ubuntu, Debian, OpenWRT, and Android 11.
product details
Core Features
High-performance Core
RU-IPC-3568-4-32-N4 adopts Rockchip's high-performance RK3568 quad-core processor, which can run Android 12/Ubuntu/Debian/HarmonyOS, with a maximum main frequency of 2.0 GHz.
Industrial-grade Design
Industrial-grade full aluminum alloy shell, featuring dust resistance, shock resistance, anti-interference, and excellent heat dissipation. It can adapt to complex and harsh operating environments, ensuring stable, reliable, and safe 7*24-hour long-term operation.
Multiple Types of Output Interfaces
It supports 2 x 2500M Ethernet ports and 2 x 1000M Ethernet ports simultaneously, as well as transmission interfaces such as USB and UART, and enables high-definition HDMI display output.
Low power consumption, lightweight and compact

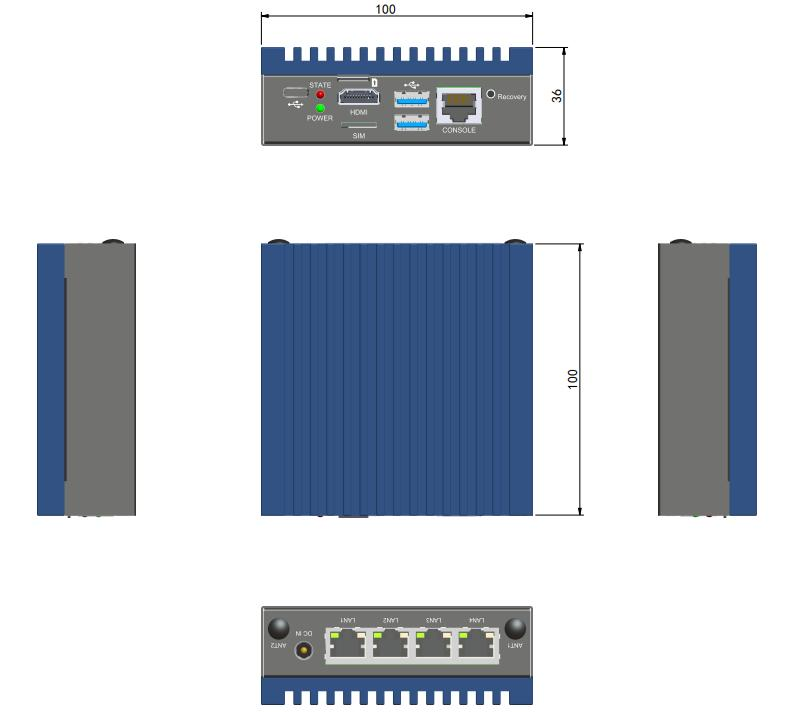

The full-load power consumption is less than 7W, and the weight is 0.5KG. Its length, width and height are 100*100*36(mm)。
Key Features
Mode | RU-IPC-3568-4-32-N4 |
Size | 100*100*36mm |
CPU | Rockchip RK3568, a quad-core 64-bit Cortex-A55 processor with a maximum main frequency of up to 2.0GHz |
GPU | Dual-core GPU, Mali-G52 2EE graphics processor |
NPU | 1.0 Tops |
RAM | LPDDR4X 4G |
Onboard eMMC | 32GB |
Display Output | HDMI2.11, supporting up to 4K@60HZ output |
Network | Ethernet RJ454 (22.5G Ethernet Ports, 2*Gigabit Ethernet Ports) |
USB | USB 3.0 * 2 (one of which is an OTG port) |
Debugging Serial Port | RJ45 |
Internal Expansion Interface | Mini PCIe Socket supports optional mSATA or PCIE expansion (WiFi module compatible) |
Power Adapter | 90~220VAC input, 12VDC/1.0A output, 5.5*2.5mm DC plug |
Operating Temperature/Humidity | 0℃ ~ +55℃, relative humidity < 93% |
Operating Systems | Android11, OpenHarmony, Linux, Ubuntu, Debian, OpenWRT |
Power Consumption | Full load: 7W |
Weight | -20℃ ~ +60℃, Relative Humidity < 95%, No Condensation |
Material/Surface Treatment | 0.5KG |
