RK3588 Series Industry PC
RU-IPC-3588-16-128-N8
The RU-IPC-3588 Series Industrial PC is applicable to edge computing and cloud hosting scenarios. It adopts the high-end RK3588 octa-core processor from Rockchip, with a maximum main frequency of 2.4 GHz.
It features an industrial-grade full-aluminum alloy shell, which provides dustproof, shockproof, and anti-interference performance, as well as excellent heat dissipation. The host can adapt to complex and harsh operating environments, ensuring its stable, reliable, and secure operation.
product details
Core Features
High-Performance Core
The RU-IPC-3588-16-128-N8 is designed for video analytics, edge computing and PC cloud hosting applications. It is powered by Rockchip's high-end RK3588 octa-core processor, supports Android 12, Ubuntu, Debian and HarmonyOS operating systems, and features a maximum main frequency of 2.4 GHz.
Industrial-Grade Design
Featuring an all-aluminum alloy industrial-grade enclosure, it offers excellent dustproof, shockproof, anti-interference and heat dissipation performance. Capable of adapting to complex and harsh operating environments, it ensures stable, reliable and secure 24/7 continuous operation.
Application Scenarios

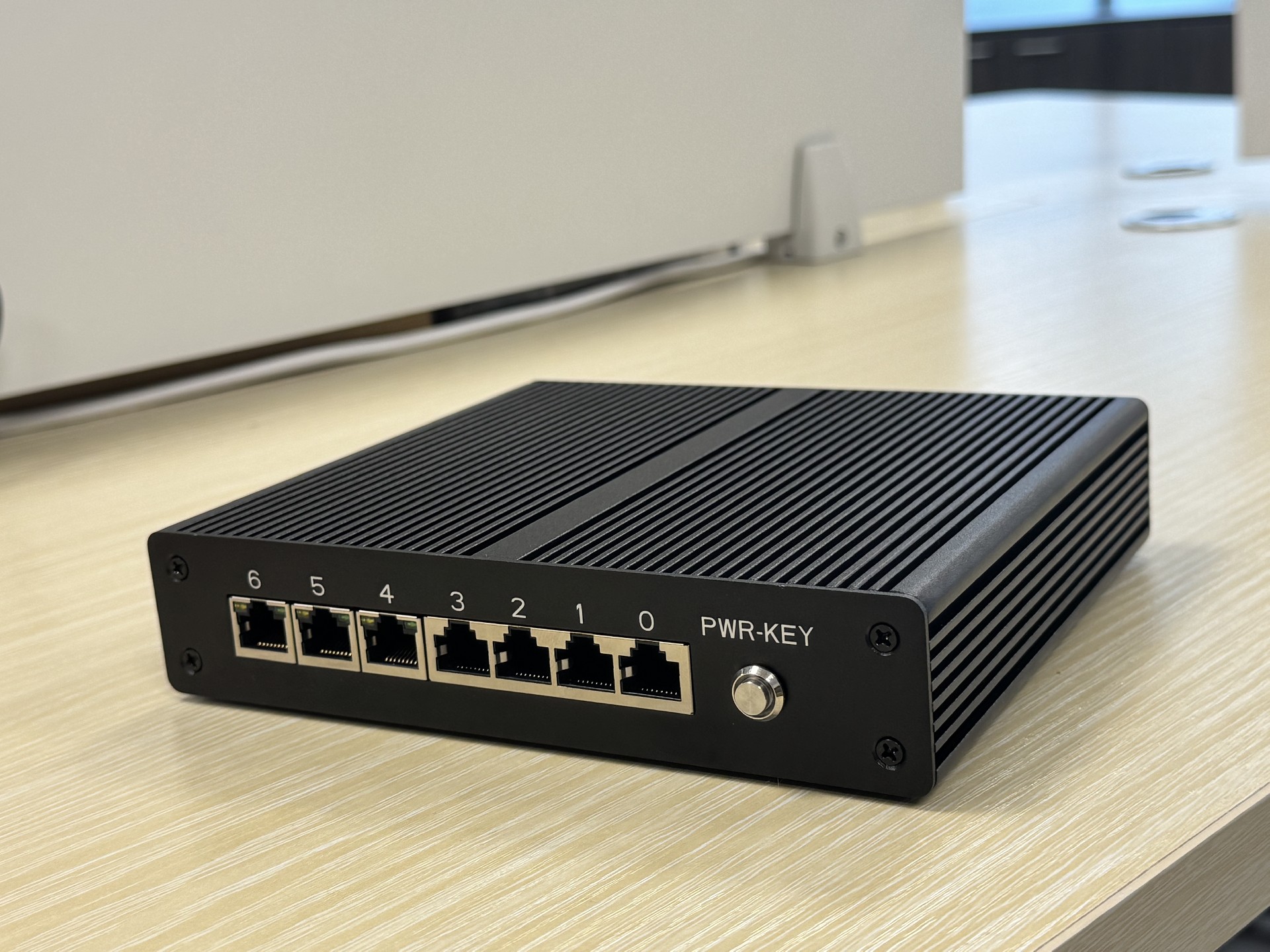

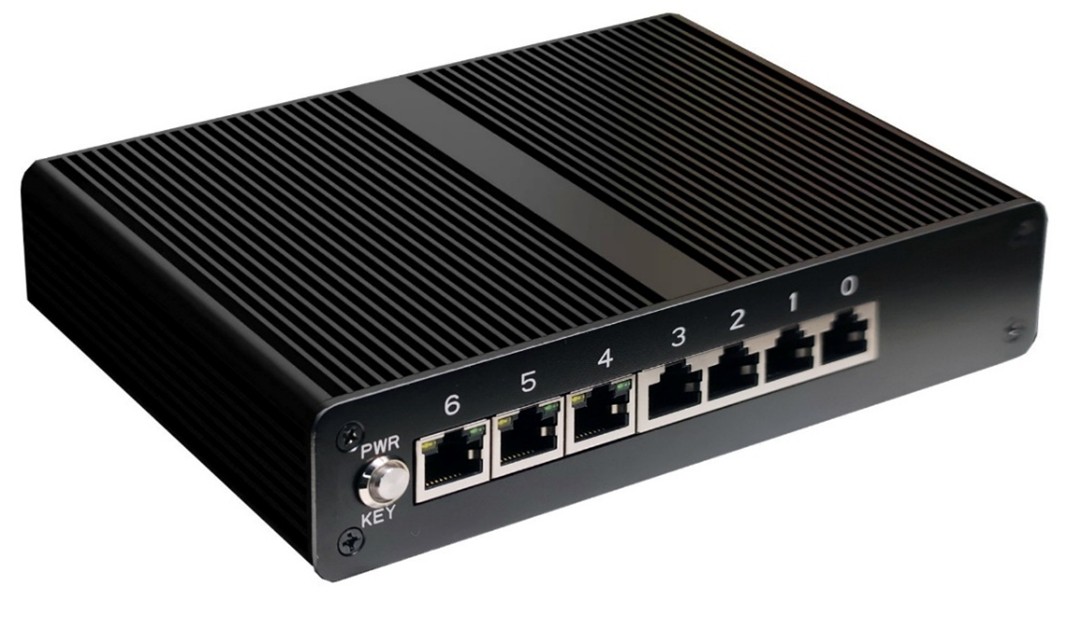

Equipped with 8 Ethernet ports, it is suitable for on-vehicle driving data and video compression processing, as well as remote data upload.
Key Features
| Dimensions | 175×155×37 (L×W×H) mm |
| CPU | Rockchip RK3588, Octa-core Cortex-A76+A55, Max Frequency up to 2.4 GHz |
| GPU | Mali-G610 GPU, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.2 |
| NPU | 6.0 Tops |
| Memory | LPDDR4 16GB |
| On-board eMMC | 128GB |
| Solid State Drive | Supports M.2 PCI-E NVMe SSD |
| Display Output | 1×HDMI 2.1, supporting max 4K@30Hz output1×DP/Type-C interface output (sharing one Type-C port) |
| Audio | 1×Line in (MIC), 1×Line out, 1×Headphone output (ERJ)Supports 3/4-segment headphone insertion |
| Network | 8×Ethernet RJ45 ports, 10/100/1000M(2 independent ports, with one port connected to a 7-port Ethernet switch) |
| USB | 2×USB 3.0, 2×USB 2.0 |
| Expansion Interfaces | 1×M.2 interface, 1×mini-PCIe interface |
| Power Adapter | Input: AC 100-240V, 50-60HzOutput: DC 12V, 5.5mm inner diameter, 2.1mm DC connector, 3A–5A(Surge voltage ≤ 18V, ripple voltage ≤ 100mV required)Supports power-on auto-boot |
| Operating Temperature/Humidity | -20℃ ~ +65℃, Relative Humidity < 85% |
| Operating Systems | Android/Ubuntu/Debian/HarmonyOS |
