Product Introduction

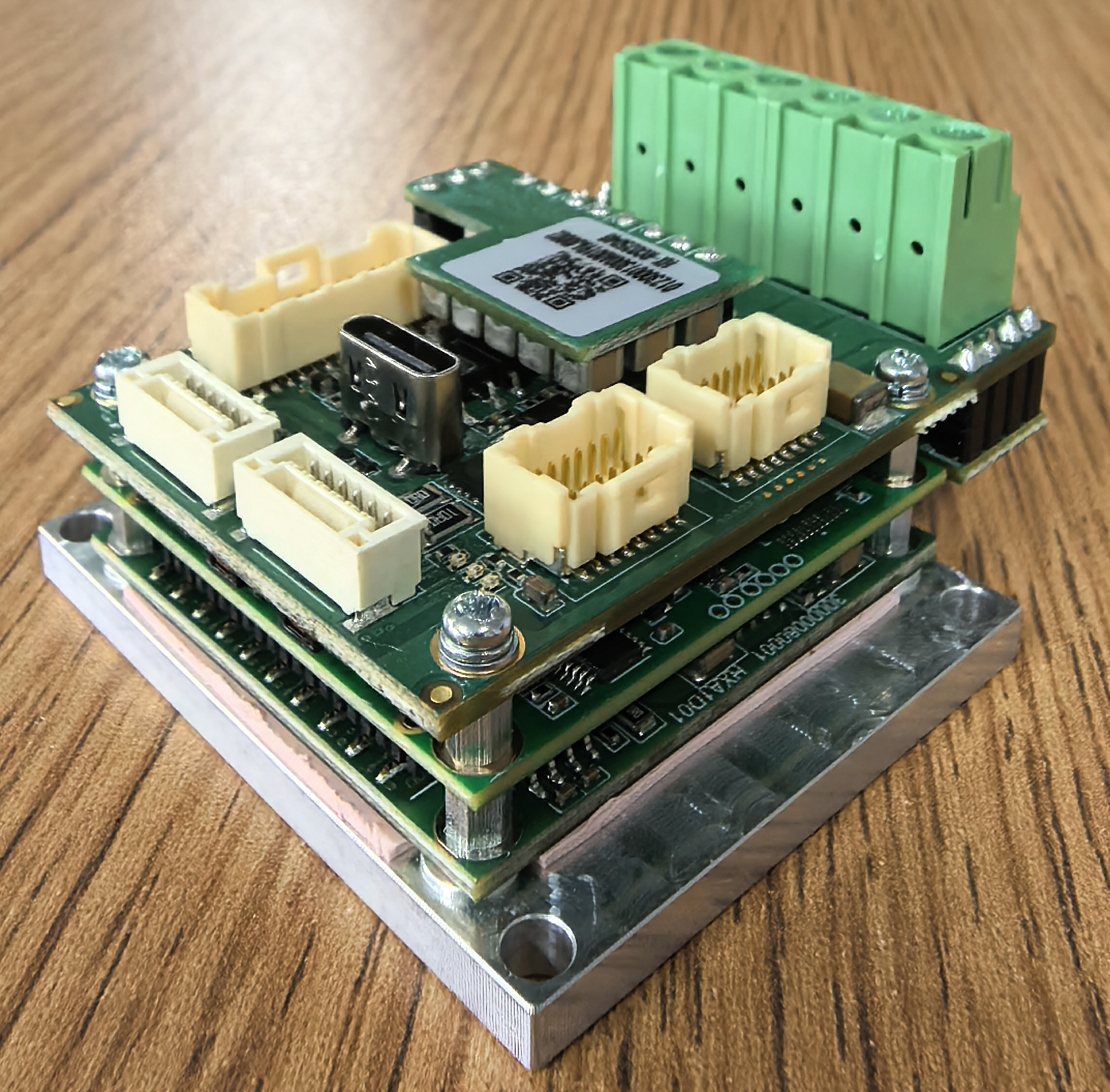

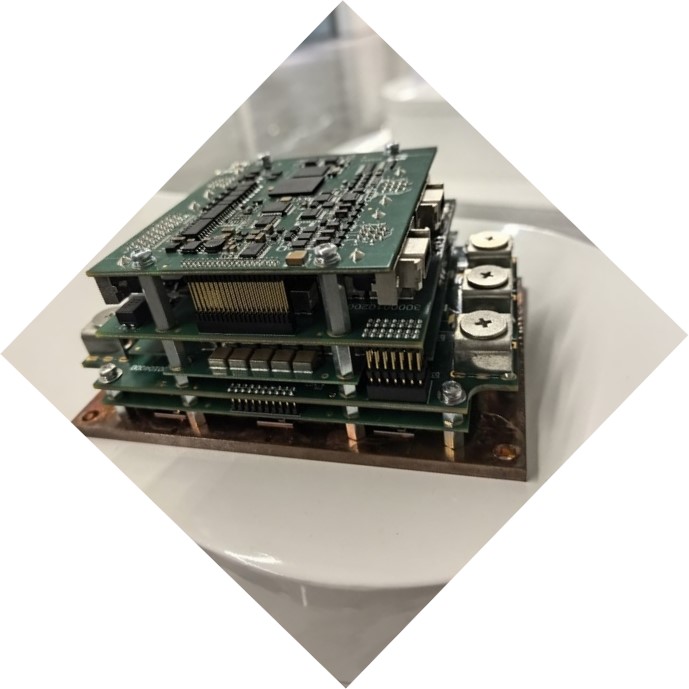

        The JGHSD series DC servo drives are special designed, featuring ARM+FPGA chips and high-quality IGBT power modules. They are compact, reliable, and support wide temperature and high-altitude operation.

Key Features

        1. Input Voltage range: 14V~60V DC

        2. Rated current options: 1A/5A/10A/25A

        3. High power density design, compact and small-sized

        4. Speed control range: 0~12000 rpm

        5. Operating temperature: -40°C to +70°C

        6. Supports resolver decoding

        7. Supports CAN Open, RS485 communication

        8. USB debugging interface, easier setup

        9. Automatic identification of parameters such as load inertia, current loop parameters, and magnetic pole angle

        10. One-click self-tuning of control parameters
