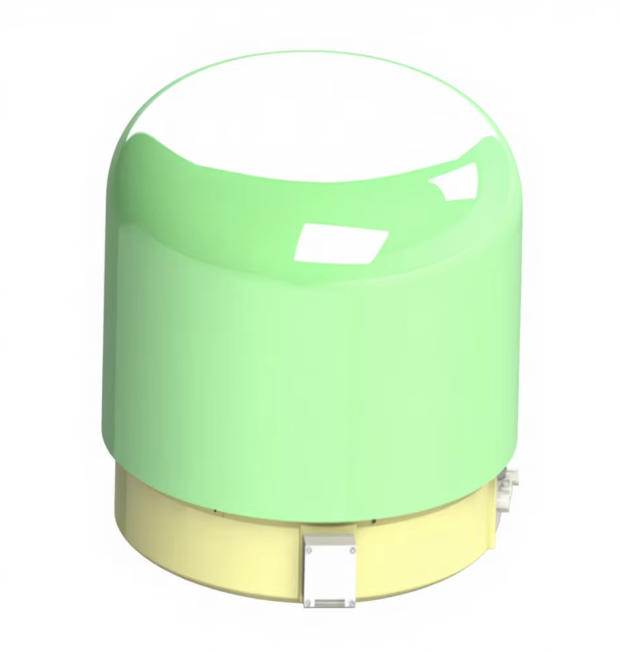

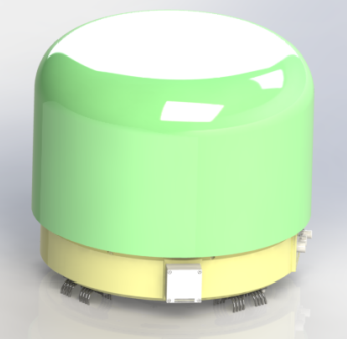

SOTM (Satcom On The Move) Pan Tilt Unit
product details
Product Introduction

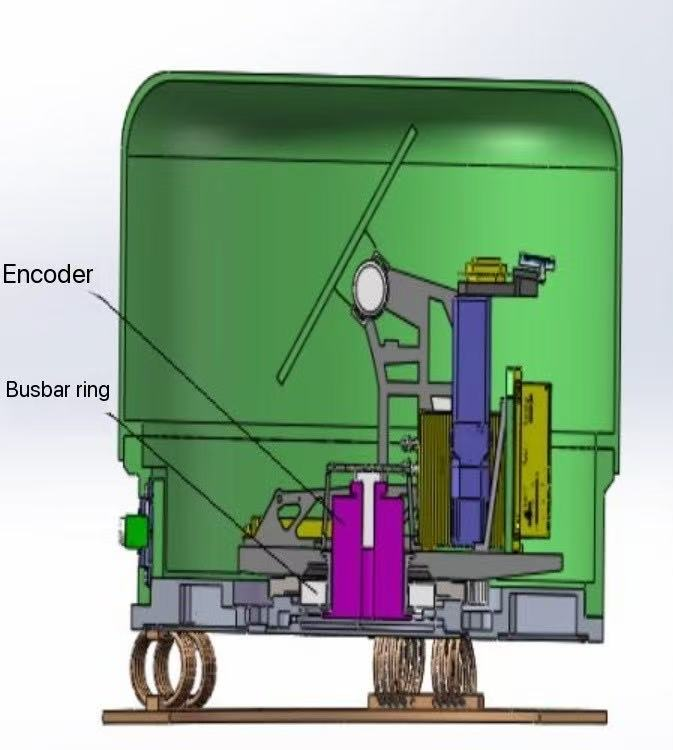

The vehicle-mounted SOTM Pan-Tilt Platform decomposes, and processes data based on the guidance position provided by the signal of the beacon. Meanwhile, it conducts comprehensive analysis and calculation using the inertial navigation data and the data collected by various sensors of the pan-tilt platform. It drive the antenna to automatically reach the target position in terms of azimuth, elevation, and polarization axis. Finally, it realizes the function of acquiring and tracking the communication target by the antenna.
Key Features
No. | Technical Specification |
1 | Tracking Accuracy≤0.5°（RMS） |
2 | Tracking Capability: Angular Velocity ≥ 120°/s, Angular Acceleration ≥ 200°/s² |
3 | Angle Reporting Data Rate: ≤ 1ms |
4 | Elevation Angle Scanning Range: -20° to 60° |
5 | Azimuth Scanning Range: 360° Continuous |
| 6 | Acquisition Time: Hot Start Acquisition Time ≤ 60s |
| 7 | Reacquisition Time: ≤ 60s within 20 minutes |
| 8 | Operating Temperature：-40℃～65℃ |
9 | Pitch and Roll Angles ≤ 12° |
