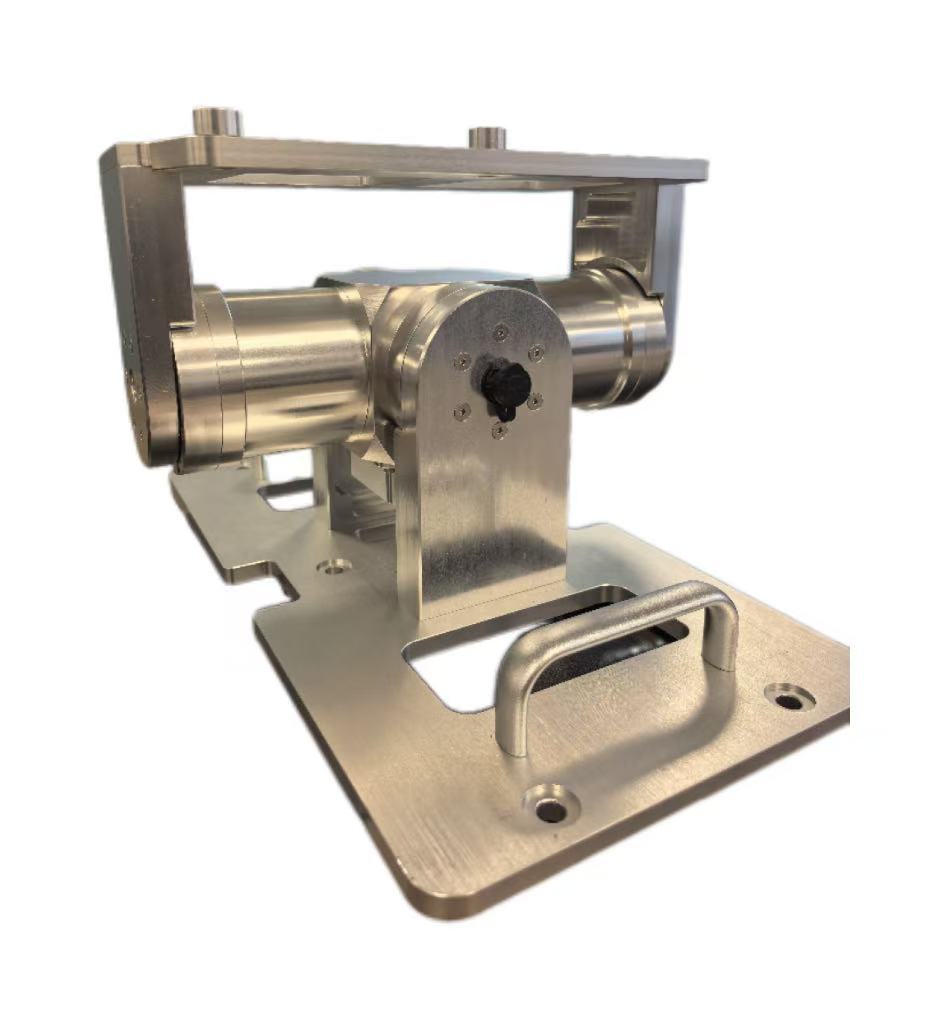

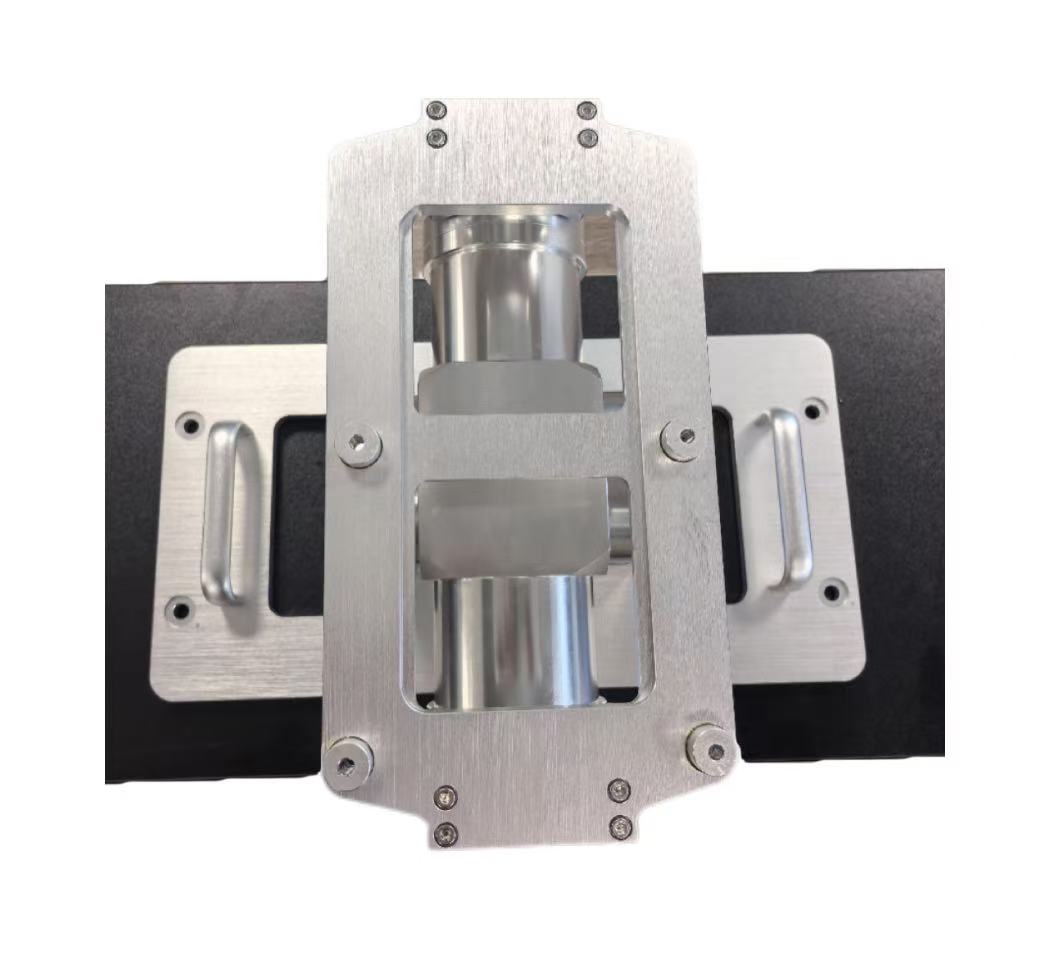

Two-Axis Stabilized Platform
RU-STP-15-030-07-SH
Mobile carriers will experience attitude angle changes due to the influence of their own motion or external interference. Precision loads mounted on the carriers, if they have specific requirements for spatial pointing, will struggle to operate normally in such environments.
For example, when the mobile carrier is a ship, the vessel will sway significantly under the impact of ocean waves during navigation, rendering precision loads such as satellite communication antennas on board inoperable. Therefore, a device is required to stabilize the precision loads, and the two-axis stabilized platform has been developed accordingly.
product details
Core Features
Based on the carrier's attitude information, it invokes the position control and disturbance compensation control functions to regulate the rotation of the load's roll axis and pitch axis, achieving the function of keeping the antenna horizontal.
It is equipped with real-time turntable status monitoring and safety protection functions.
Turntable Controller: STM32 control chip with built-in multiple control algorithms
Azimuth Drive System: Including roll and pitch servo motors and drivers, encoders, and inclinometers
Application Scenarios
This stabilized platform is applicable to maritime satellite communication systems, and is compatible with flat-panel antennas. It features a lightweight turntable and flexible deployment.
Key Features
Technical Indicators | |||
Category | Item | Parameters | Remarks |
Performance Parameters | Stabilization | 0.3°（RMS） | |
Maximum Load | 15KG | ||
Roll Range | ±30° | ||
Pitch Range | ±30° | ||
Sway Period | Roll&pitch axes swing ±25° respectively, period of 5s | Time taken to rotate from +25° to -25° | |
Mechanical | Weight | 7.2KG | |

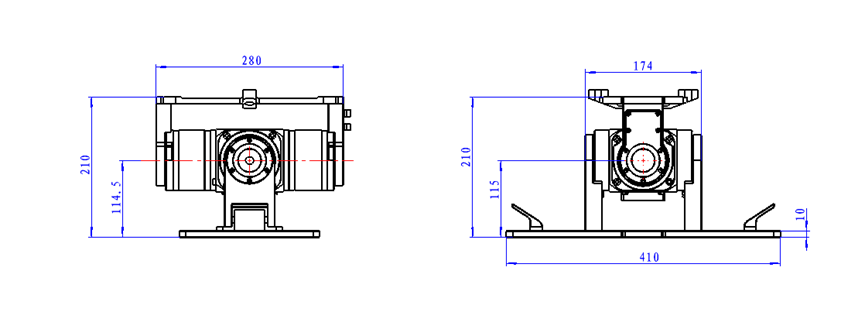

Size | 280 *180*210(L*W*H*, mm) | ||
Electrical Specification | Rated Supply Voltage | DC48V | |
Rated Power | 200W | ||
Enviromental Specifications | Operating Temperature | -40°~+85° | |
Storage Temperature | -50°~+85° | ||
Protection Class | IP65 | ||
Interface Information Table
Category | Interface ID | Cores Qty. | Interface Definition | Remarks |
Power Interface | XS01 | 4 | DC48V/100W |
