Meteorological Servo Pan-Tilt System

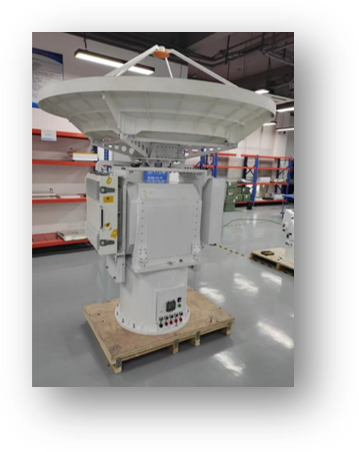

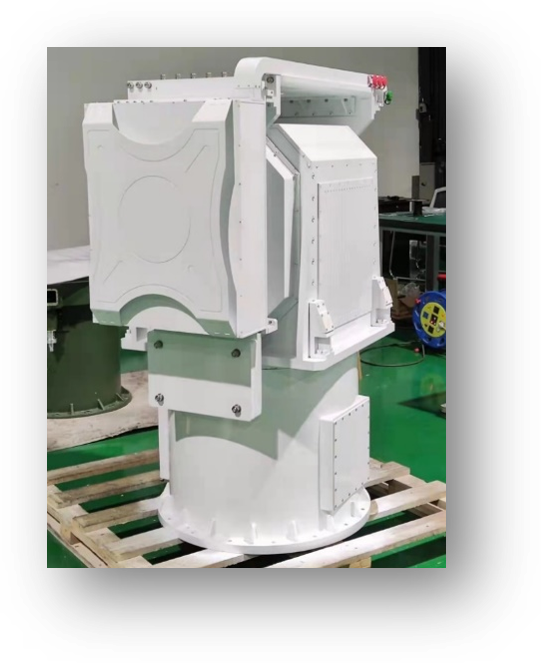

RU-PTU-200-005-350-M
Designed specifically for parabolic meteorological radars, this product serves as a high-performance carrying and driving solution.
By responding to external servo control signals, it precisely regulates the antenna’s horizontal (azimuth) and vertical (pitch) rotations, empowering the radar to achieve accurate, rapid, and reliable scanning of target airspaces—critical for meteorological observation and environmental monitoring.
product details
Core Features
Multi-Mode Precision Control: Supports comprehensive operational commands, including azimuth/pitch positioning, constant-speed azimuth scanning (PPI), azimuth sector scanning, pitch sector scanning (RHI), volume scanning (azimuth/pitch), and parking/homing (PARK) functions.
Real-Time Data Feedback: Provides instantaneous display and reporting of azimuth/pitch angle data, enabling seamless integration with radar control systems for dynamic adjustment.
Intelligent Monitoring & Safety Protection: Equipped with real-time turntable status monitoring (e.g., speed, load, temperature) and built-in safety mechanisms to prevent over-limit operations, ensuring stable and secure long-term operation.
Application Scenarios

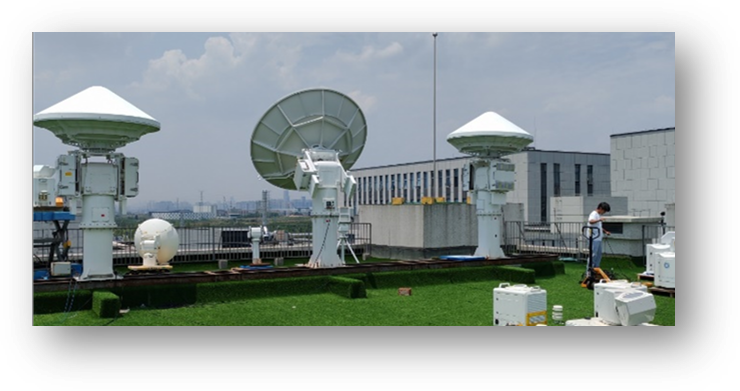

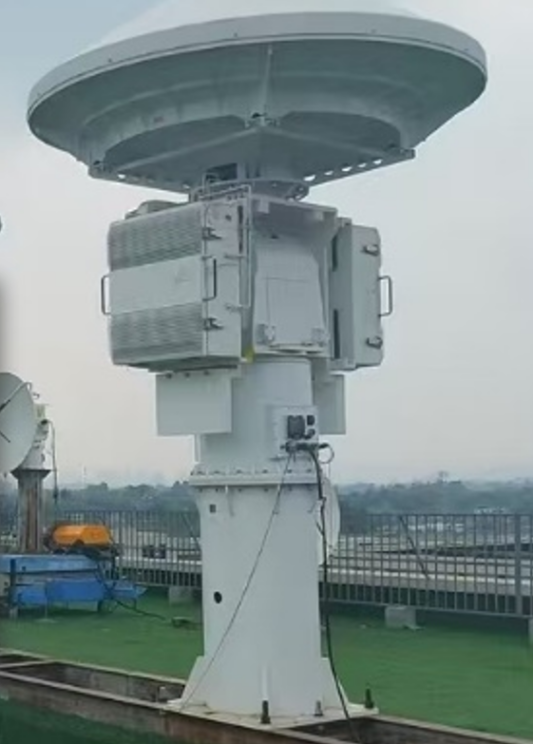

Versatile across radar systems, including search radars, tracking radars, meteorological radars, and jamming radars. It supports multiple mounting methods and is compatible with both parabolic antennas and flat-panel antennas, offering flexible deployment for land-based, vehicle-mounted, or fixed-site applications.
Key Features
Technical Indicators | |||
Category | Item | Parameters | Remarks |
Performance Parameters | Positioning Accuracy | ±0.05° | |
Maximum Load | 200KG | ||
Rated Rotational Speed | Azimuth: 36°/s; Pitch: 36°/s | ||
Rotational Acceleration | Azimuth: 20°/s²; Pitch: 20°/s² | ||
Rotational Range | Azimuth: 0°~360°; Pitch: -2°~182° | ||
Mechanical Parameters | Weight | 350KG | |
Dimensions | 786*560*1153(L*W*H*, mm) | ||
Electrical Parameters | Rated Supply Voltage | AC220v | |
Rated Power | 2500W | ||
Environmental Parameters | Operating Temperature | -40°~+85° | |
Storage Temperature | -50°~+85° | ||
Protection Class | IP65 | ||
Wind Resistance Class | Level 8 Wind | ||
Interface Information Table
Category | Interface ID | Cores Qty. | Interface Definition | Remarks |
Power Interface | XS01 | 3 | AC220v/2500W | L/N/PE |
Communication Interface | XS02 | 1 | Optical Fiber | |
XS03 | 6 | RS422 | ||
XS04 | 12 | Hand Control Box | ||
XS05 | 6 | Temperature and Humidity Sensor |
