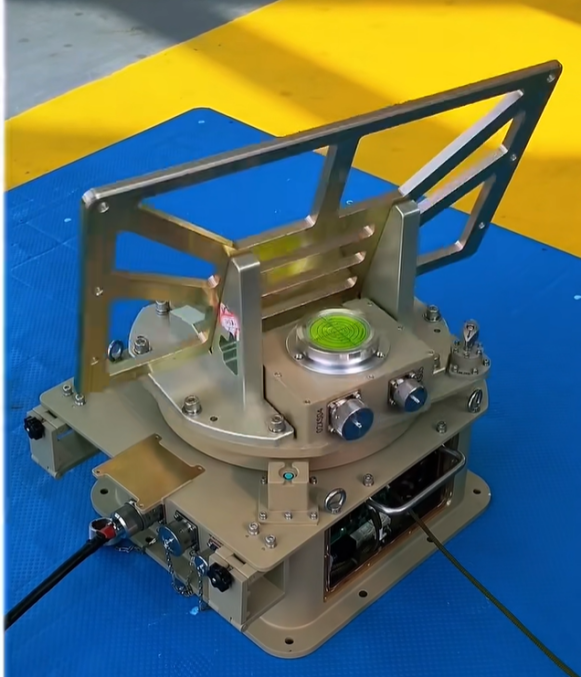

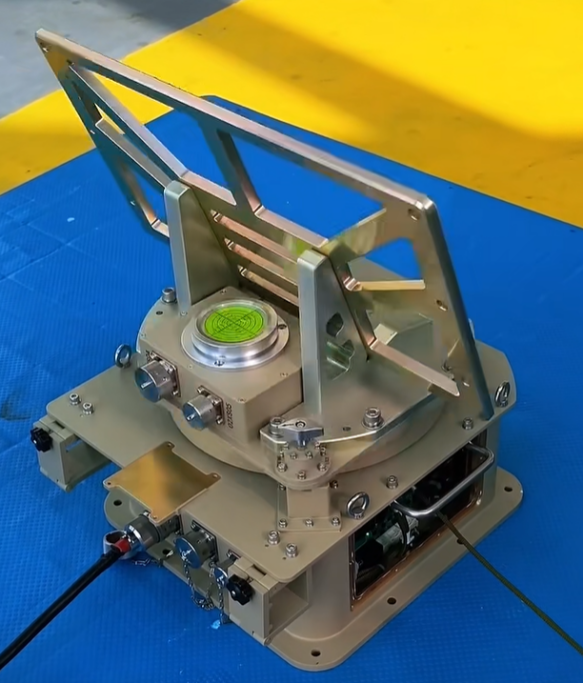

Single-Axis Search and Tracking Servo Pan-Tilt System
RU-PTU-S-55-005-32-R
The turntable subsystem communicates seamlessly with radar arrays via the RS422 serial port: it receives a full suite of control commands—including turntable rotation, stop, homing, positioning, array locking, array unlocking, and speed regulation—while real-time transmitting critical data (azimuth angle information, turntable status, and heartbeat signals) back to the radar array. This bidirectional communication ensures precise, responsive coordination between the turntable and radar system.
product details
Core Features
Multi-Mode Operation & Integrated Support:Supports radar circular scanning, sector scanning, and target tracking. It also provides stable power supply and dedicated signal transmission paths for upper and lower servo unit equipment, ensuring systemic compatibility and reliability.
Precision Target Positioning:Enables accurate azimuth alignment with target airspaces in direct response to control commands, delivering consistent pointing accuracy for mission-critical operations.
Real-Time Data Feedback:Offers instantaneous display and reporting of angle information, facilitating seamless closed-loop control and dynamic adjustment of the radar system.
Intelligent Monitoring & Safety Assurance:Integrates real-time turntable status monitoring (e.g., operational parameters, load conditions) and comprehensive safety protection mechanisms to prevent malfunctions and ensure long-term stable, secure operation.
Key Features
Technical Indicators | |||
Category | Item | Parameters | Remarks |
Performance Parameters | Positioning Accuracy | ±0.05° | |
Maximum Load | 55KG | ||
Rated Rotational Speed | Azimuth: 360°/s | ||
Rotational Acceleration | Azimuth: 80°/s² | ||
Rotational Range | Azimuth: 0~360° | ||
Mechanical Parameters | Weight | 32KG | |
Dimensions | 315 *315*242 (L*W*H*, mm) | ||
Electrical Parameters | Rated Supply Voltage | AC220v | |
Rated Power | 300W | ||
Environmental Parameters | Operating Temperature | -40°~+85° | |
Storage Temperature | -60°~+85° | ||
Protection Class | IP65 | ||
Wind Resistance Class | Level 6 Wind | ||
Interface Information Table
Category | Interface ID | Cores Qty. | Interface Definition | Remarks |
Power Interface | PW01 | 4 | AC220V/50A | |
Communication Interface | CM01 | 8 | RJ45/1000M | |
CM02 | 12 | RS422, Inertial Navigation Power Supply |
