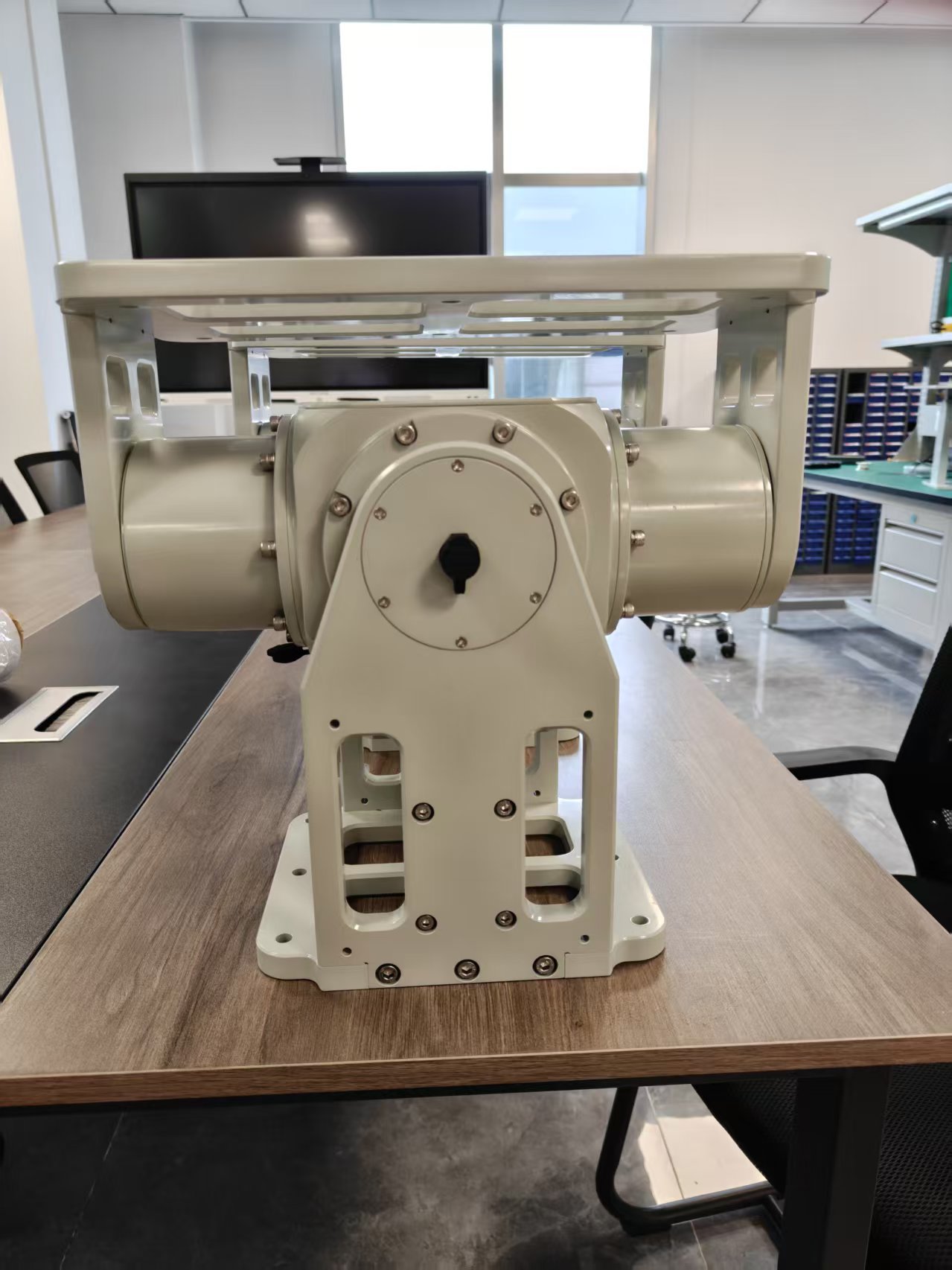

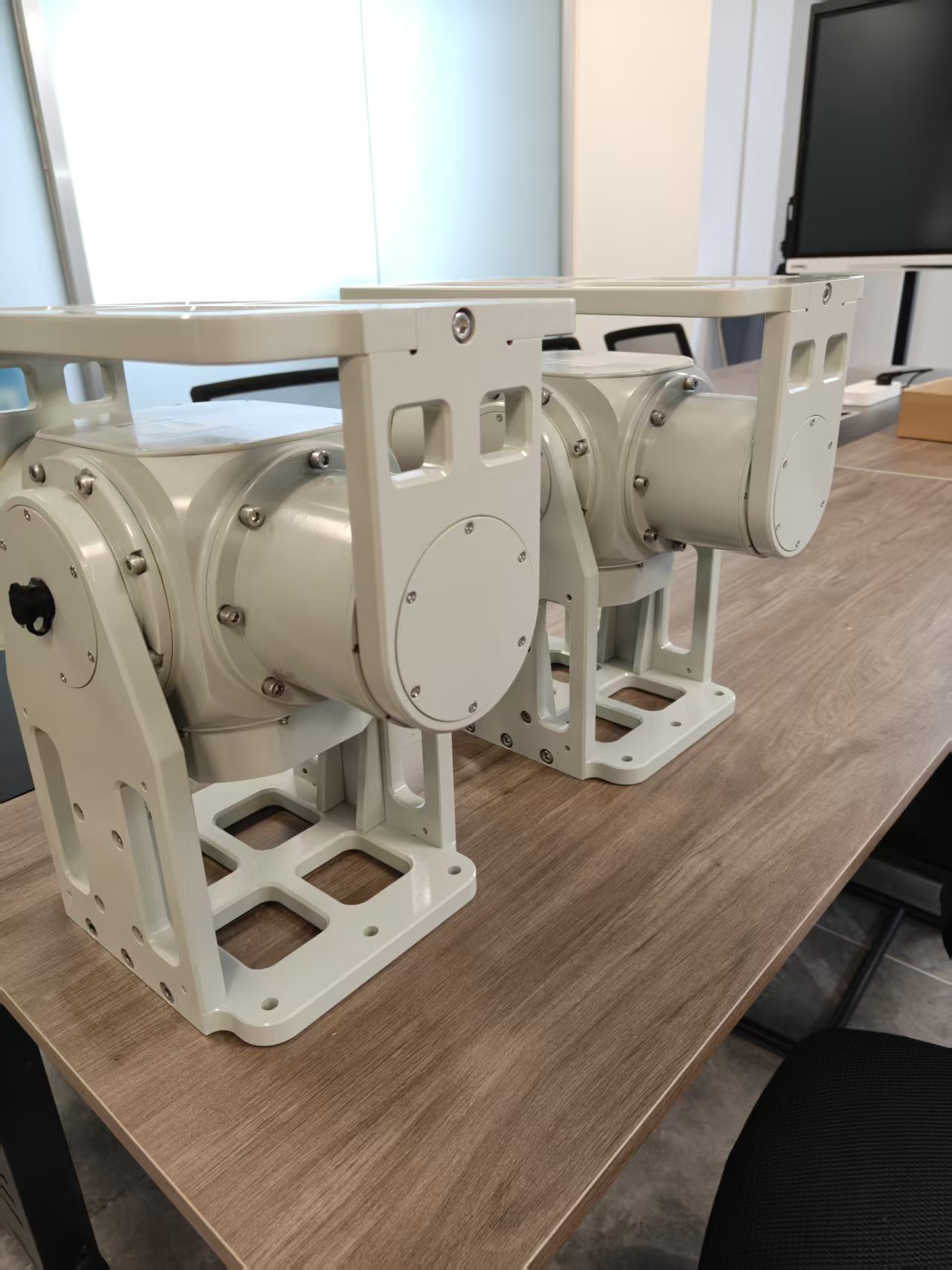

Shipborne SATCOM Stabilized Platform 25KG
A moving carrier may experience attitude changes due to its own motion or external disturbances. Precision payloads with specific spatial pointing requirements cannot function properly in such environ
A moving carrier may experience attitude changes due to its own motion or external disturbances. Precision payloads with specific spatial pointing requirements cannot function properly in such environments. The Shipborne SATCOM Antenna Stabilized Platform was developed to stabilize precision payloads under these conditions.
Key Features
- Position control and disturbance compensation based on carrier attitude — adjusts roll & pitch axes to maintain antenna level
- Real-time turntable status monitoring and safety protection
- Turntable controller: STM32 MCU with built-in control algorithms
- Azimuth drive system: roll & pitch servo motors, drives, encoders, and inclinometer
- Compatible with flat-panel antennas; lightweight turntable, flexible deployment
Technical Parameters
| Stabilization Accuracy | 0.8° |
| Max Payload | 25KG |
| Roll Range | ±30° (X-axis) |
| Pitch Range | ±20° (Y-axis) |
| Max Speed | Roll, Pitch: 40°/s |
| Max Acceleration | Roll, Pitch: 80°/s² |
| Weight | ≤17KG (customizable) |

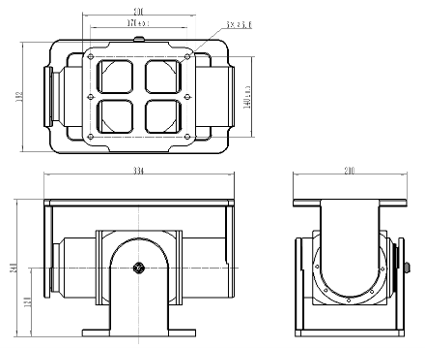

| Dimensions | 334×200×240 mm (customizable) |
| Rated Supply Voltage | AC 220V |
| Power Consumption | ≤200W |
| Operating Temperature | -40°~+60° |
| Storage Temperature | -40°~+70° |
| Protection Class | IP65 |
