2-Axis Stabilized Platform 13KG
Mobile carriers may experience attitude changes due to their own motion or external interference. Precision payloads mounted on the carrier have specific spatial pointing requirements and cannot funct
Mobile carriers may experience attitude changes due to their own motion or external interference. Precision payloads mounted on the carrier have specific spatial pointing requirements and cannot function properly in such environments. The 2-Axis Stabilized Platform was developed to stabilize precision payloads, keeping antennas level through position control and disturbance compensation.
Key Features
- Position control and disturbance compensation based on carrier attitude — adjusts roll & pitch axes to maintain antenna level
- Real-time turntable status monitoring and safety protection
- Suitable for maritime SATCOM; compatible with flat-panel antennas; lightweight and flexible deployment
Technical Parameters
| Stabilization Accuracy | ±1° |
| Max Payload | 13KG |
| Swing Range | Roll ±35°, Pitch ±20° |
| Swing Speed | ≤40°/s |
| Swing Acceleration | ≤80°/s² |
| Weight | ≤9.2KG |

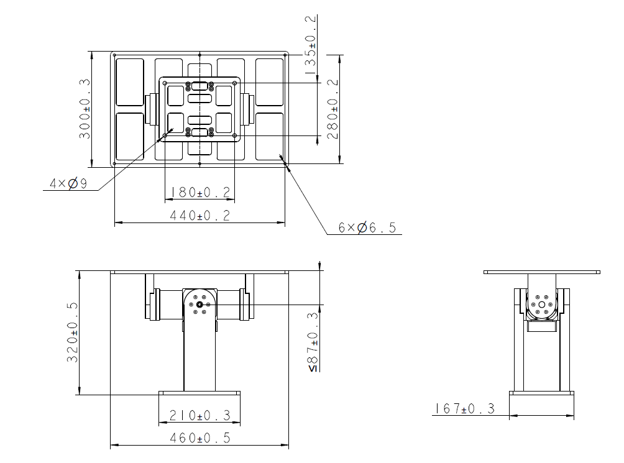

| Dimensions | 460×300×320 mm (L×W×H) |
| Rated Supply Voltage | AC 220V |
| Max Power | 100W |
| Operating Temperature | -30°~+65° |
| Storage Temperature | -45°~+70° |
| Protection Class | IP65 |
