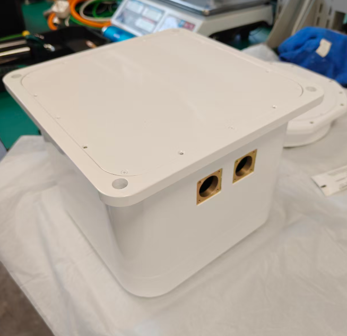

Single-Axis Azimuth Servo Turntable 20 · Gear Drive
The single-axis azimuth servo turntable integrates a stepper motor, gear reducer, gears, encoder, driver, and controller, widely used with search radars, tracking radars, encrypted-communication radars, and security optoelectronic equipment.
The single-axis azimuth servo turntable (gear-drive type) integrates a stepper motor, gear reducer, gears, encoder, driver, and controller for precise azimuth rotation. The integrated slip ring carries 30A power, 6 communication channels, and 2 x 100M Ethernet, allowing unlimited continuous payload rotation. Positioning accuracy is ±0.1° with 20kg load capacity and -40 to +65 degrees C operation. Widely used with search radars, tracking radars, encrypted-communication radars, and security optoelectronic equipment.
Key Features
- Rated Power: 1500W
- Load Capacity: 20kg
- Slip ring: 30A power / 6 comm channels / 2 x 100M Ethernet
- Drive Type: Gear transmission
- Operating Temperature: -40℃ to +65℃
Technical Specifications
| Rated Voltage | DC 48V |
| Rated Power | 1500W |
| Speed | 0~5rpm |
| Acceleration | 60°/s² |
| Positioning Accuracy | ±0.1° |
| Backlash | ≤7arcmin |
| Control Interface | RS422 |
| Communication Protocol | Pelco-D |
| Baud Rate | 115200bps |
| Rotation Range | N×360° |
| Load Capacity | 20kg |
| Weight | 11kg |
| Operating Temperature | -40℃ to +65℃ |

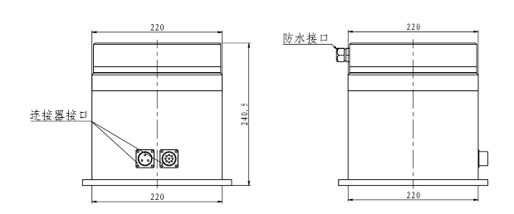

| Power Interface X1 | Y50X-1412ZJ10-B, external power input |
| Communication Interface X2 | Y50X-1419ZJ10, payload network communication |
| Interface X3 | Flying leads: network, turntable communication, power |
